Beok brand thermal actuators are mainly used in water heating system. The thermal actuator can be used in conjunction with our WP series room thermostat to be connected to the valves or water manifolds.

Product Introduction

Our wifi heating and cooling thermostat, zigbee smart home gateway, NTC 10K 3950 floor sensor have long service life and strong market competitiveness, which is a model of quality import and price localization. We hope to integrate discipline speaking and values education into production and operation, and work life. We are firmly at the forefront of technological development and embracing social change based on our mastery of materials science. We hold tightly to the central task of comprehensively improving quality and efficiency, and build a firm premise of safety and environmental protection. Our company has developed economy, superior geographical location and convenient transportation network, so that our products will continue to move toward to the whole country and the whole world.

Products Description



Beok RZ-AN230-NC thermal actuator is a small control valve used in water floor heating systems, usually installed on each circuit of the manifold. The electric actuator is opened or closed by the signal of the controller to adjust the circulation of hot water in the floor heating pipe under the floor, thereby achieving the purpose of adjusting the indoor temperature. In addition to the classic appearance design, this electric actuator also uses a French imported valve core to extend the service life of this electric actuator. Although there are many products with the same appearance on the market, we have better quality.



This electric actuator is a normally closed valve, which means that when there is no current, the actuator closes the circuit. With the help of the indicator element, the status of the actuator can be quickly checked. Therefore, this electric actuator is suitable for most floor water heating systems.

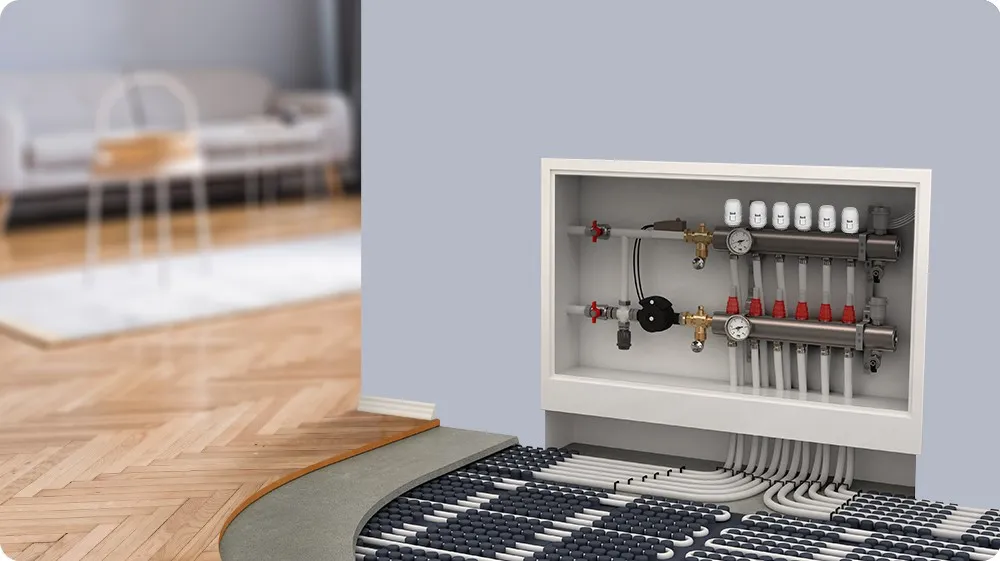

230-01-1000x



Video



Technical Parameters
Features Technical Data
Voltage 230/24V
Current About 50MA
Power Consumption 2W
Working Mode NC
Protection Grade IP41
Working Journey ≥3.5mm
Working Temperature -20~50℃
Storage Temperature -20~50℃
Security Class II ( Double Insulation )
Cable Length 80cm
Running Time 180 seconds ( open-closed )



230-02-1000x

More Features



thermal actuator



01

PC+ABS

This thermal actuator use flame retardant materials to make it very safty for using.

electrical thermal actuator



02

Work State Remind

When RZ-AN230-NC actuator works, it will rise in 2-3mm and the head will show a blue circle.

NC actuator



03

Waterproof Design

The protect level of this thermal actuator is IP41, so it has high waterproof function.

electrical actuator



04

M30*1.5mm

The connection ring size is M30*1.5mm. But M28*1.5mm support customization.

Spring Return Function

The spring return function allows the electric heating actuator to automatically reset and return to its initial state after a power outage.

Paraffin Advancing

When actuator is powered on, the wax in the container expands due to the heat, pushing the piston or valve core to move forward.



Noiseless Operation

The use of precise mechanical structure and materials reduces friction and vibration between parts, thereby reducing noise generation.

Thermal Expansion

The conversion of electrical energy into mechanical motion is achieved through the thermal expansion principle of paraffin when actuator works.



Model Spec
products
230-NC

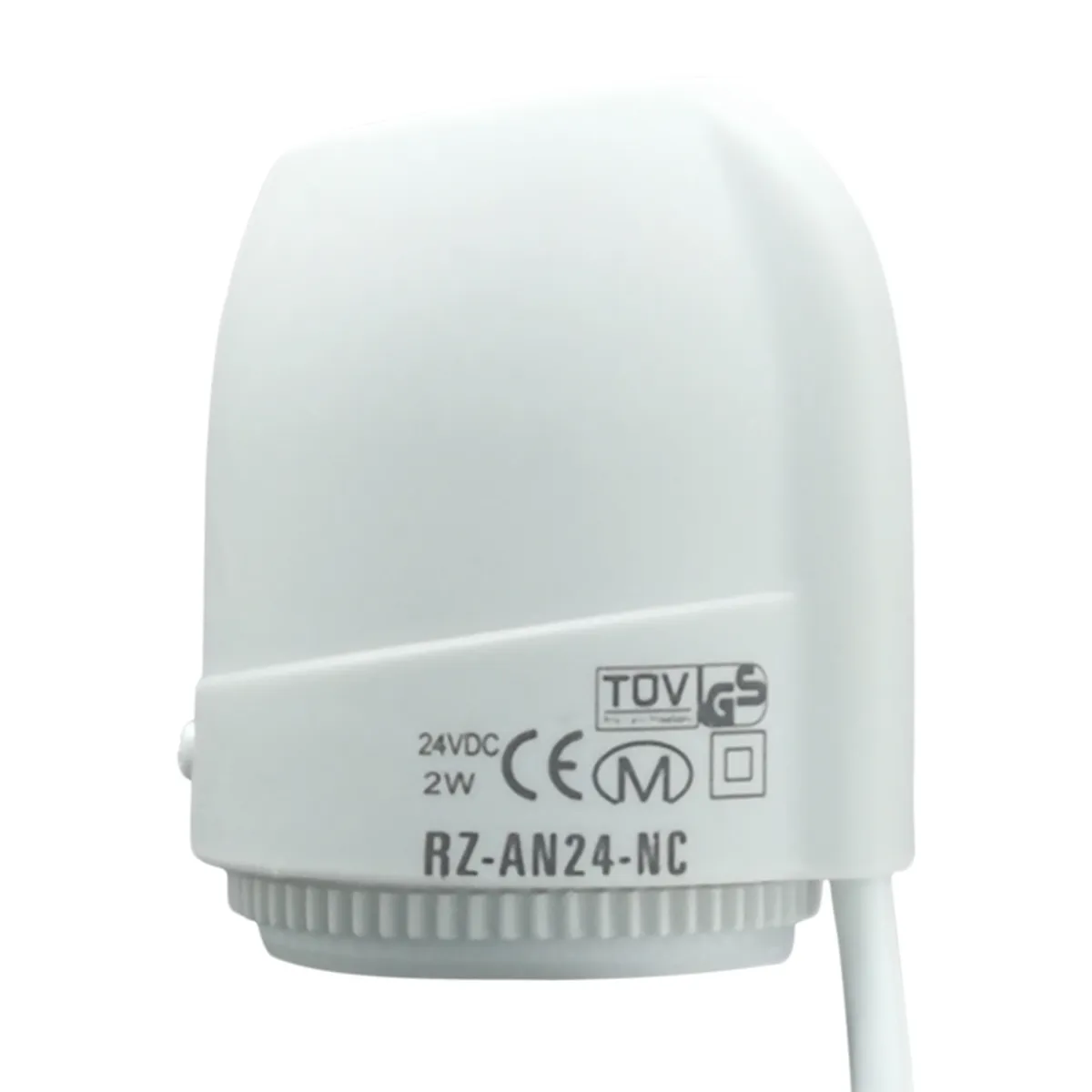

24-NC
Model number RZ-AN230-NC RZ-AN24-NC
Voltage 230V 24V
Working Type Normally Closed Normally Closed



Manual
