Wired Digital Gas Boiler Thermostat BOT-W506-ZIGBEE
Application:Digital Thermostat for Boiler System
Feature: ZIGBEE function; Daily Program;battery or USB power supply
Model: BOT-W506-ZIGBEE
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of wired digital gas boiler thermostat bot-w506-zigbee in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.
Products Description

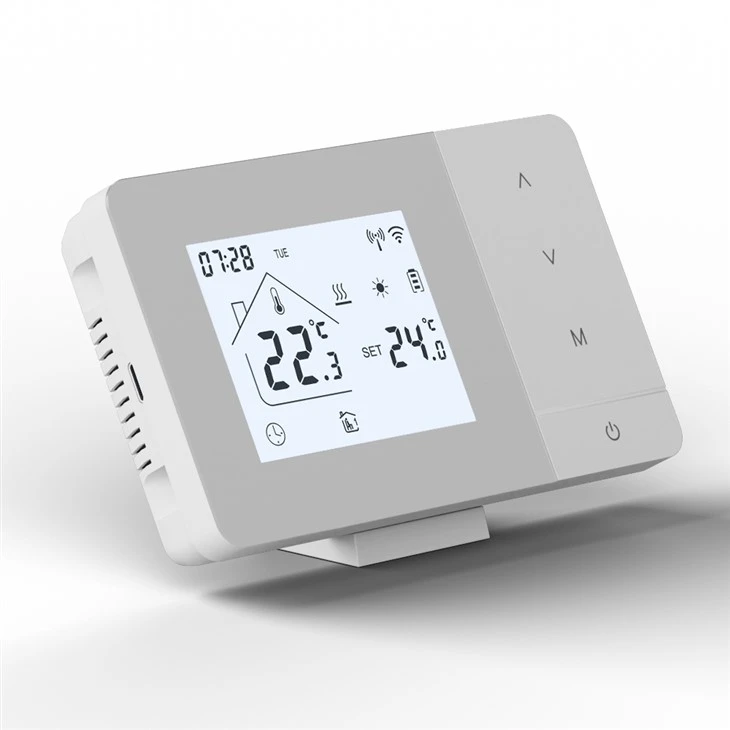

BOT-W506-ZIGBEE series is a wired digital thermostat specifically designed for gas boilers. It features a clear, large display on the left side for easy viewing of temperature and other functions, while the right side is equipped with touch buttons for users to adjust temperature and various settings.
BOT-W506-ZIGBEE gas boiler thermostat can be integrated with ZIGBEE, a gateway protocol that enables users to connect multiple Zigbee devices (including the thermostat) and control them remotely via a smartphone.
Users can use Zigbee to control the thermostat via APP and Voice, and through the Tuya APP, users can also share devices with family and friends, which greatly improves the convenience for users to control the thermostat intelligently via mobile phones.
Video
Technical Parameter
| Product Model | BOT-W506-ZIGBEE |
| Product Name | Wired Digital Gas Boiler Thermostat |
| Controlled Load | Gas boiler heater 3A |
| Power Suply | 3pcs AAA batteries / Type-C USB cable |
| Temperature Precision | ±0.5℃ |
| Temperature Range | 5℃~60 ℃ |
| Temperature Calibration | -9.9℃~9.9℃ |
| Temperature Hysteresis | 0.5℃~10℃ |
| Antifreeze Function | YES |
| Child Lock Function | YES |
| Programmable function | Daily Programmable optional |
| Self-consumption Power | <170 μW |
| Product Size | 15.5cm*9cm*5.5cm |
| Warranty | 24 months |
Main Functions
App Control
BOT-W506-ZIGBEE series thermostat works with Tuya app and Smart Life app, you can control it via phone anywhere and anytime.
Voice Control
BOT-W506-ZIGBEE series thermostat is compatible with Yandex Alice, Google Home, Amazon Alexa, etc.
Low Battery Alert
When the low battery indicator is displayed,battery replacement is required.
Share Device
Via the Tuya app, you can share thermostat control permissions with family and friends.
Model Spec
| Product appearance |
|
|
| product Model | BOT-W506-W-zIGBEE | BOT-W506-B-ZIGBEE |
| zigbee | √ | √ |
| Weight | 175g | 175g |
| Load Current | 3A | 3A |
| Input | AC100-240V | AC100-240V |
| Battery Power | 3 AAA | 3 aAA |
| USB Cable Power | 5V | 5V |
| Color | White | Black |
Manual
Have more Questions?
Contact us right now!
