Battery Powered Wifi Gas Boiler Thermostat BOT-R9V-WIFI

Battery Powered Wifi Gas Boiler Thermostat BOT-R9V-WIFI

Application: for Combi Boiler Coutrol
Feature: Wi-Fi Control; Battery Powered; Wall hung Installation
Model: BOT-R9V-WIFI

Fast Delievery
Quality Assurance
24/7 Customer Service

Products Description

BOT-R9V-WIFI Thermostat is a Wifi Gas Boiler Thermostat with AA batteries powered, and the thermostat can be wall-hung installed. At the meanwhile, this thermostat is also a Wi-Fi control thermostat and work with Tuya or Smartlife application.

One of the most special features of this BOT-R9V-WIFI Heating Controller is that the APP can record the daily work report of the device within a month, so you can clearly see the working hours of it. Users can set the BOT-R9V-WIFI according to data and living habits to achieve energy-saving effects.

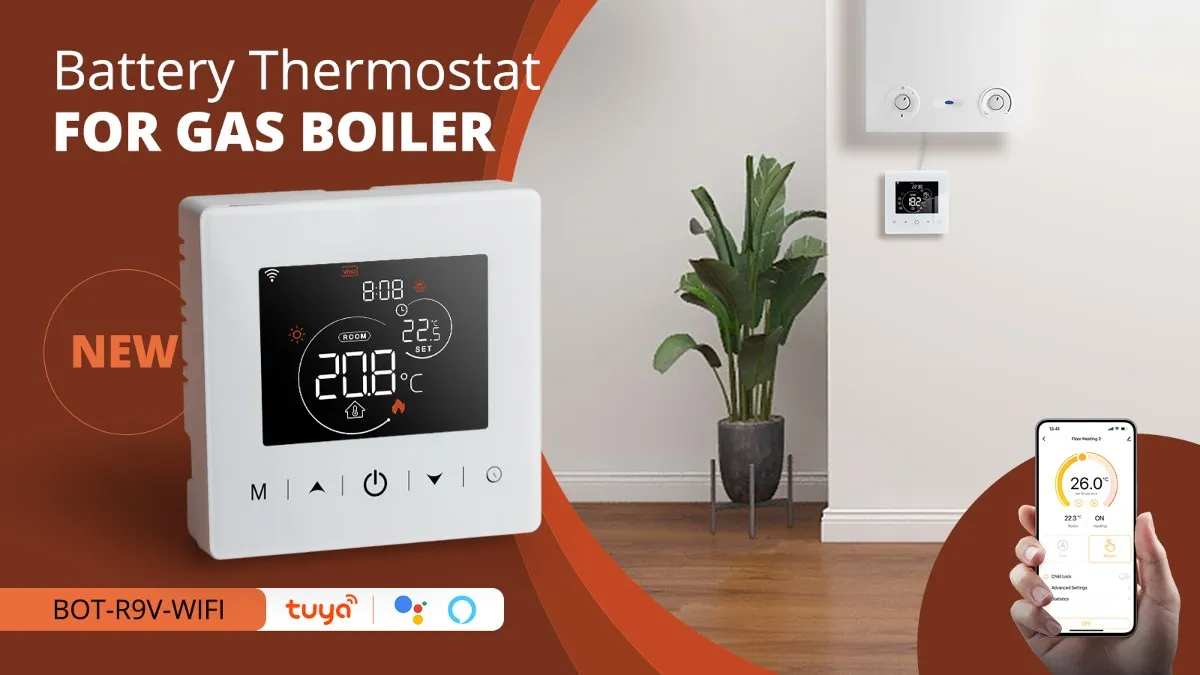

BOT-R9V-WIFI boiler thermostat

Video

Technical Parameters

Features	Technical Data
Name	Wifi Gas Boiler Thermostat
Power supply	3 x 1.5 V alkaline AA batteries
Temperature setting range	5~95 Celsius
Hysterisis	0.5~10℃,Factory setting 0.5 Celsius
Setpoint temperature accuracy	5~95 Celsius
Ambient temperature	-5~50 Celsius
Protection level	IP20
Housing material	Anti-Flammable PC
Wi-Fi function	WiFi - 802.11 b/g/n, 2.4GHz
Certificates	CE; RoHS

Main Functions

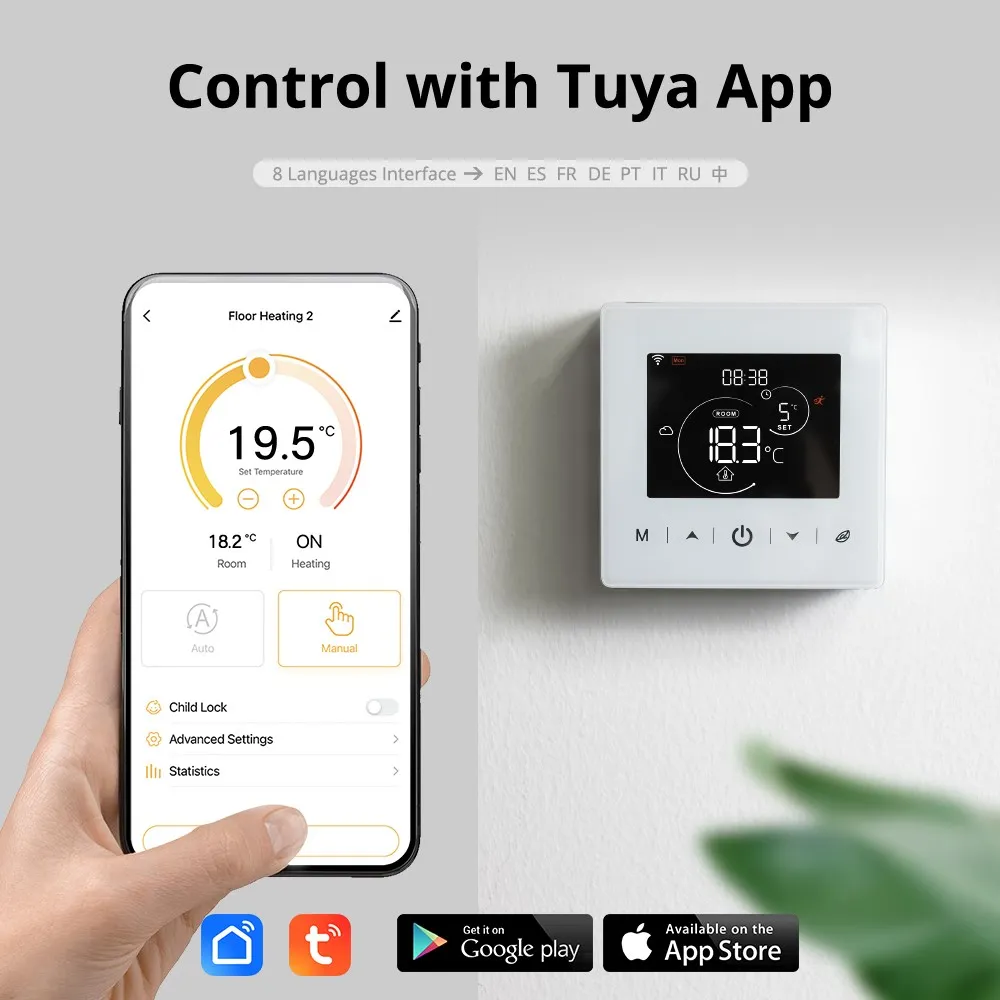

Tuya Remote Control

BOT-R9V-WIFI Wifi Gas Boiler Thermostat with Wi-Fi control function, so, it can be controlled anywhere and anytime.

Voice Assistant Support

BOT-R9V-WIFI controller work with voice speaker assistant, it can support Google Home, Amazon Alexa, Yandex Alice.

Heating Data Report

Making reports about the working of the thermostat about one day or one month.

Low Battery Reminder

When the low battery symbol appears on the screen, it is time to change the battery.

Mode Spec

Wire Connection

The wire connection of our BOT-R9V-WIFI Wifi Gas Boiler Thermostat is shown in the right. It use to connect with dry contact gas boiler.

Model Name	BOT-R9V-WIFI
Wi-Fi function	Yes
Voice Control	Yes
Power Supply	Battery
Load Current	3A
Controlled Device	Combi Boiler(dry contact)
Installation Method	Wall-hung Installation

FAQ

Q: How long can the batteries of BOT-R9V-WIFI thermostat be used?

A: The batteries of BOT-R9V-WIFI can be used for about 6 months.

Q: Does BOT-R9V-WIFI thermostat need to be installed with a junction box ?

A: BOT-R9V WIFI Gas Boiler Thermostat back is flat, and it can be wall hung installed. So it does not need a junction box.

Q: Is the BOT-R9V-WIFI thermostata compatible with my boiler?

A: Our BOT-R9V-WIFI can be used to control gas boiler which are with dry contact,and it is compatible with most of these boilers on the market.Of course, to be on the safe side, you can contact us and provide the gas boiler models for confirmation.
