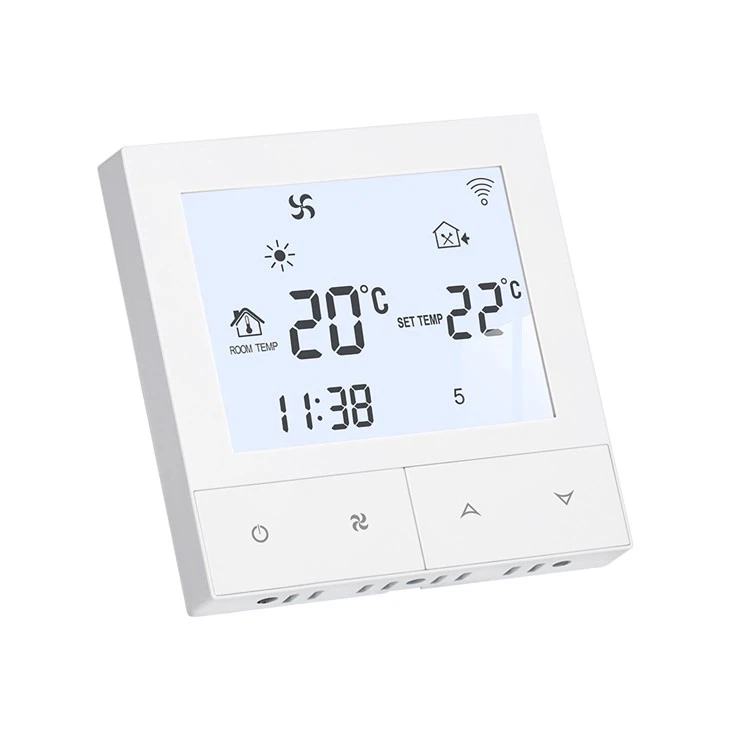

Push-Button Digital 3 Speed Fan Coil Thermostat TDS72-AC
Application: for Central Air Conditioning System
Feature: Wi-Fi function; Supporting Phone Control
Model: AC2 or AC4 optional
AC2-2 pipes fan coil
AC4-4 pipes fan coil
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
TDS72 Fan Coil Thermostats are widely used to control the terminals of central air-conditioning system in the business, industrial and civil constructions, such as fan coil, motorized valve and wind valve. It has TDS72-WIFI-AC2 for 2 pipe fan coil system and TDS72-WIFI-AC4 for 4 pipe fan coil system.
Video
Technical Parameters
| Application | Fan Coil Heating and Cooling System |
| Controlled Device | Fan Coil |
| Mode | Auto ( Timer On/Off ) Manual |
| Phone App |
Tuya Smart/Smart Life/Beok AC |
| Power Supply | AC95-240V |
| Current Loading | 3-5A |
| Temperature Range | 5-99℃ |
| Temperature Accuracy | +/-0.5℃ |
| Fan Speed | 3 ( High/Middle/Low ) |
| Install Way | Wall Insert |
| Communicate Function | Optional |
| Child Lock Function | √ |
Thermostat features
TDS72 Fan Coil Thermostat
3 Woking Modes
TDS72 series air conditioner thermostats have heating, cooling and ventilation working modes.
3 Fan Speed
TDS72 series fan coil room thermostat has low, middle and high fan speed and auto fan speed for option.
Timer On/Off
TDS72 central air conditioning thermostat has timer function, thermostat can be turned on or turned off automatically according to your setting.
Power Memory
TDS72 series central heating and cooling fan coil thermostat has power memory function, it can save your settings when thermostat is out of power.
Model Spec
| Model Name | TDS72-AC2 | TDS72-WIFI-AC2 | TDS72-AC4 | TDS72-WIFI-AC4 |
| Wiring Connection |
|
|
||
| Application | 2 pipe fan coil system | 2 pipe fan coil system | 4 pipe fan coil system | 4 pipe fan coil system |
| Control Objects | One valve | One valve | Two valves | Two valves |
| Power Supply | AC230V | AC230V | AC230V | AC230V |
| Current Load | Imax 5A | Imax 5A | Imax 5A | Imax 5A |
| WiFi App | / | Tuya Smart / Smart Life | / | Tuya Smart / Smart Life |
| Voice Control | / | Google Home / Amazon Alexa | / | Google Home / Amazon Alexa |
| Installation Type | Wall embedded type | Wall embedded type | Wall embedded type | Wall embedded type |
| Installation Box |
86mm hidden box and European 60mm round box |
86mm hidden box and European 60mm round box |
86mm hidden box and European 60mm round box |
86mm hidden box and European 60mm round box |
FAQ
Q: What is the difference between 2 pipe and 4 pipe thermostat?
Q: I have a wall hang air conditioner, can I use the thermostat to control?
Q: Does the 2 pipe fan coil thermostat has weekly program function?
Q: Can I customized Modbus function thermostat?
Q: Can I set the fan coil control mode?
Manual
