How do electro-thermal actuators enable individual room temperature control?

In traditional underfloor heating systems, multiple rooms are often heated by a single heat source. Without independent control devices, hot water may continue to flow into a specific area even after it has reached the set temperature, leading to overheating and energy waste.



Zoned temperature control systems achieve independent temperature settings and adjustments for each room through the coordinated operation of room thermostats, electro-thermal actuators, underfloor heating manifolds, and a central control unit. Although compact in size, electro-thermal actuators are crucial components for regulating the flow of hot water to individual rooms.



What is room-by-room temperature control?

Room-by-room temperature control-also known as zoned temperature control-involves dividing a residence, office, hotel, or other building into multiple independent temperature-controlled zones.

For example, a home might be divided into the following zones:

Living room zone / Master bedroom zone / Children's room zone / Study zone / Bathroom zone

An independent thermostat is installed in each zone, allowing users to set different temperatures based on the room's function, usage schedule, and personal preferences.

For instance, during the day, the living room could be set to 22°C and the bedroom to 19°C; at night, the living room temperature could be lowered while the bedroom temperature is raised. This approach not only enhances comfort but also reduces unnecessary energy consumption.





What role do electro-thermal actuators play in the system?

Electro-thermal actuators are typically installed on the return valves of underfloor heating manifolds to control the opening and closing of the corresponding piping circuits.

In an underfloor heating system, each pipe circuit generally corresponds to a specific room or heating zone. When a room requires heating, the electro-thermal actuator opens the valve, allowing hot water to flow into the underfloor heating pipes for that zone; once the room reaches the set temperature, the actuator closes the valve, thereby reducing or stopping the flow of hot water.

Therefore, an electro-thermal actuator can be understood as an "automatic valve control device" within a room-by-room temperature control system.

It does not directly sense temperature itself; instead, it operates based on control signals received from the room thermostat.



How do electro-thermal actuators control individual rooms?

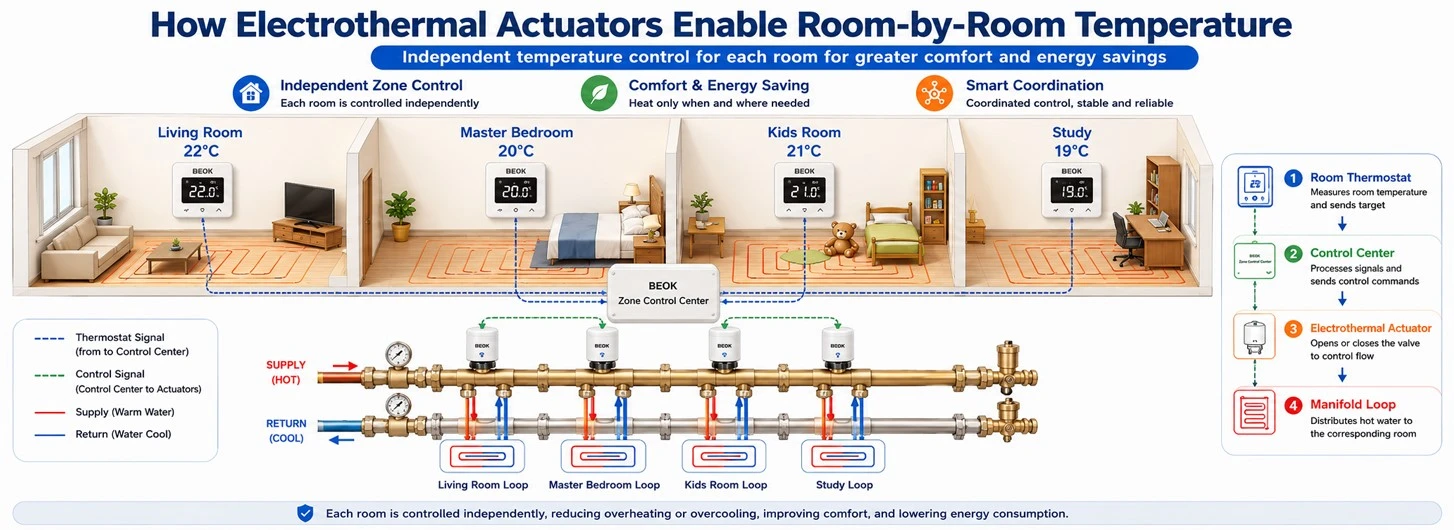

Consider an underfloor heating system serving three rooms:

The living room corresponds to Circuit 1 of the manifold.
The master bedroom corresponds to Circuit 2 of the manifold.
The study corresponds to Circuit 3 of the manifold.

An independent thermostat is installed in each room, and an electro-thermal actuator is mounted on the valve for each circuit.

When the living room temperature drops below the set point, the living room thermostat sends a heating signal. Upon receiving this signal, the wiring center supplies power to the electro-thermal actuator for Circuit 1.

The internal heating element of the actuator activates, gradually opening the valve. Hot water then flows into the underfloor heating circuit serving the living room, raising the room temperature.

Once the living room reaches the set temperature, the thermostat stops sending the signal. Power to the electro-thermal actuator is cut off, and the valve gradually closes, reducing or stopping the flow of hot water in that circuit.

Meanwhile, the master bedroom and study continue to operate independently based on the status of their respective thermostats, without directly affecting one another.

In this way, the system achieves true room-by-room temperature control.



Can multiple thermal actuators be installed in a single room?

Yes. For large living rooms, open-plan areas, or long underfloor heating pipe runs, a single room may be served by two or more heating circuits.

In such cases, a single room thermostat can control multiple thermal actuators simultaneously. Provided the output capacity of the thermostat or wiring center meets the requirements, these actuators can be switched on and off in unison.



What are the advantages of room-by-room temperature control?

1. Enhanced comfort

Different temperatures can be set for different rooms, avoiding issues such as an overheated living room, a chilly bedroom, or continuous heating in unoccupied rooms.

2. Energy savings

Once a room reaches the set temperature, the corresponding heating circuit automatically shuts off, reducing unnecessary heat output.

3. Adaptability to usage schedules

Users can configure heating schedules based on their daily routines-for example, lowering the bedroom temperature during the day on weekdays and restoring heating in advance for the evening.

4. Convenient smart control

When paired with a smart thermostat, the system supports features such as remote smartphone control, scheduled programming, "away" modes, freeze protection, and voice control.

5. Improved system management efficiency

Hotels, apartments, office buildings, and commercial complexes can manage different zones independently, preventing the entire facility from operating at high temperatures simultaneously.



The electro-thermal actuator is a critical control component in underfloor heating zone control systems. By receiving signals from room thermostats, it automatically opens or closes valves on the manifold, enabling independent operation of the hot water circuits for different rooms.

A well-designed zone control system not only maintains comfortable temperatures in each room but also minimizes energy waste based on actual usage needs.

When selecting an electro-thermal actuator, key specifications to verify include operating voltage, configuration (normally open or normally closed), connection size, valve stroke, power rating, and compatibility with thermostats and wiring centers. Proper matching of these components is essential to ensure the long-term, stable operation of the zone control system.
