Grey/White Keyboard Plate Smart Underfloor Heating Thermostat TS4
Application: 16A/3A underfloor heating system
Features: App remote control; week program
Model: EP or WP
EP is for 16A electric underfloor heatng
WP is for 3A water underfloor heatng
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of grey/white keyboard plate smart underfloor heating thermostat ts4 in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.
Products Description
TS4 series Smart Underfloor Heating Thermostat can effectively control the operation of the floor heating system. By accurately controlling the room temperature, it can avoid excessive heating and unnecessary energy consumption, thereby saving energy and obtaining a stable and comfortable heating environment. This thermostat can be connected to your Wi-Fi network and controlled remotely through Tuya Smart app or Smart Life App. You can adjust the temperature in your home anytime, anywhere, or set an automated temperature adjustment plan based on your living habits.
TS4 touch screen room thermostat has some new functions compared to traditional room thermostats. Users can choose to turn on or off the sound when touching the buttons. For example, the sound can be turned off before going to bed at night, so that when operating the thermostat or accidentally touching the buttons, there will be no noise that affects the sleep of family members. On the other hand, if there are elderly people at home, the button sound of turning on the thermostat can remind them that the thermostat has been operated, and can remind the elderly to check the thermostat to prevent energy waste caused by misoperation.
Video
Technical Parameter
| Current Load |
≤ 16A (electric heating) ≤ 3A (water heating) |
| Power Supply | 100~240VAC, 50~60Hz |
| Electric Energy Consumption | < 1Watt |
| Temperature Setting Range | 5~95℃ |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~99℃ |
| Sensing Element | NTC |
| Product Size | 86*86*14mm |
| Product Material | Anti-flammable PC |
| Ambient Temperature | 0~45℃, 5~95％RH(Non-condensing) |
| Storage Temperature |
-5~55℃
|
| Timing Error | < 1% |
| Installation Hole distance | 60mm (suit for Europe standard size mounting box) |
More Features
Large LCD Screen
Manual / Auto (Weekly Program) Mode
TS4 room thermostat has manual mode and auto mode, you can set the working mode aacording to your habbits.
Adjustable Brightness
TS4 touch screen thermostat has 4 brightness level, including low brightness, medium brightness, high brightness, turn off brightness.
Sensor Mode
TS4 temperature controller has 3 sensor mode, you can choose IN sensor mode, OUT sensor mode or ALL sensor mode.
Key Lock
You can lock the touch buttons of TS4 thermostat on the device or on app to prevent misoperation.
Power-off Memory
TS4 smart underfloor heating room thermostat can memory all your settings if it lost power
Model Spec

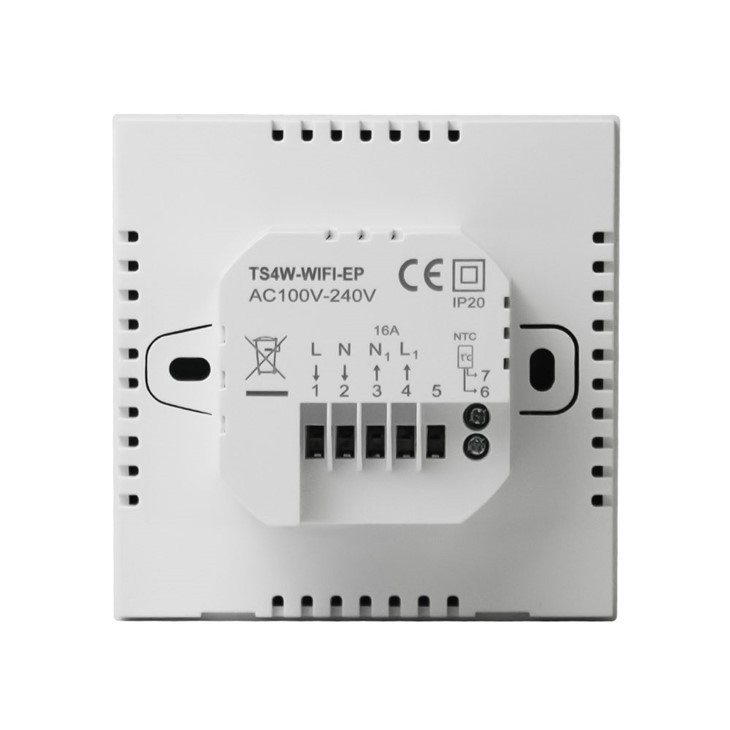

| Model Name | TS4G/W-EP | TS4G/W-WP | TS4G/W-WIFI-EP | TS4G/W-WIFI-WP |
| Wiring Diagram |
|
|
|
|
| Current Loading | 16 Amps | 3 Amps | 16 Amps | 3 Amps |
| Sensors | External floor sensor + Inner air sensor | Inner air sensor only | External floor sensor + Inner air sensor | Inner air sensor only |
| WiFi App | × | × | Tuya / Smart Life | Tuya / Smart Life |
| Speaker Assistant | × | × | Google Home / Alexa / Yandex | Google Home / Alexa / Yandex |
Manual
Grey White Keyboard Plate Smart Underfloor Heating Thermostat TS4
