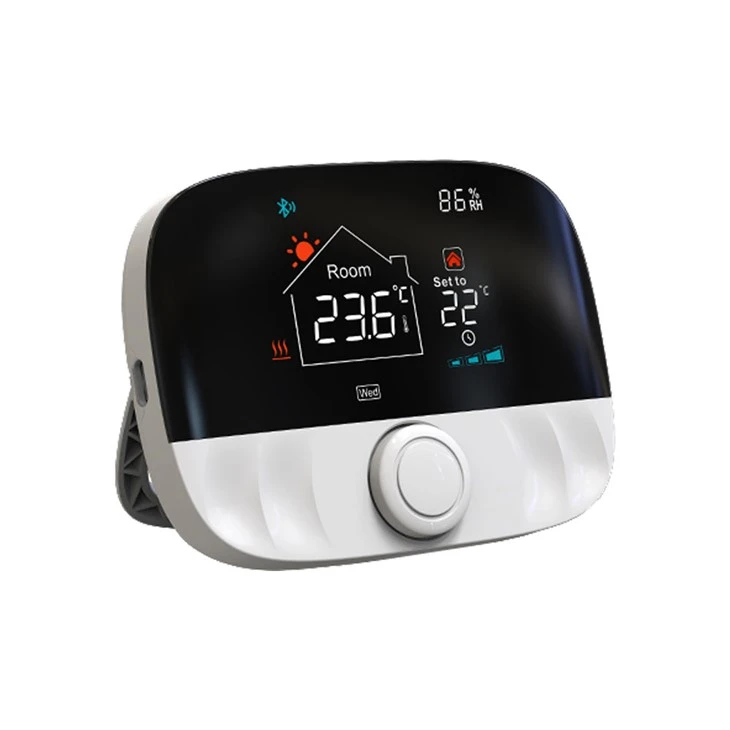

Battery And USB Powered Wireless Boiler Thermostat BOT-T9N
Application:Wall-hung gas boiler system control
Feature: Knob type control; Desktop design
Model: BOT-T9N
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of battery and usb powered wireless boiler thermostat bot-t9n in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.
Products Description
BOT-T9N wireless gas boiler thermostat is a temperature controller used for boiler system control. In addition to common temperature controller functions, BOT-T9N can also control room humidity in WiFi mode.
The control of BOT-T9N wireless room thermostat is knob type, making it more convenient for users to use and providing a stronger experience. BOT-T9N can be installed on walls or placed on a desktop, and installation is also very simple. It can be paired and connected to the wall receiver conveniently, allowing you to remotely control the wall mounted stove even in your bedroom.
video
Technical parameters
| Feature | Parameter |
| Product Nmae | Battery and USB Powered Wireless Gas Boiler Thermostat |
| Power Supply | 2x1.5V alkaline AA batteries/ USB powered (Type C interface) |
| Wireless Frequency | 433MHz (FSK) |
| Temperature Control Accuracy | 0.1℃ |
| Temperature Setting Range | 5~95℃ |
| Setting Temperature Accuracy | 0.5℃ |
| Transmission Distance | ≤100m in the open air |
| Ambient Temperature | 5-99℃ (same for both high and low limitation) |
| Protection Level | IP20 |
Special Feature
BOT-T9N wireless gas boiler thermostat has a special feature
Knob key
Precise temperature control: The thermostat with knob button can accurately adjust the temperature to ensure that the indoor temperature is always kept within the set range.
Convenient operation: The knob button design is simple and intuitive, easy to operate, and users can easily adjust the temperature without complicated operation steps.
Strong durability: The knob button design is relatively simple, there are no wearing parts, long service life, and not prone to failure.
Energy saving and environmental protection: The thermostat with knob button can adjust the temperature according to actual needs, avoid energy waste, and save energy and protect the environment.
Model Spec
| Wiring Diagram |
|
|
| Model | BOT-T9N | |
| Controlled Objects | For wall-hung boilers | |
| Installation Method | wall mounting/desktop placement | |
| Dimension | 24x86x118mm | |
| Frost Protection | ON/OFF | |
| Temperature Difference Start | 0.5~10℃ | |
| Temperature Compensation | No floor sensor, only internal one | |
manual
Battery and USB Powered Wireless Boiler Thermostat BOT-T9N
