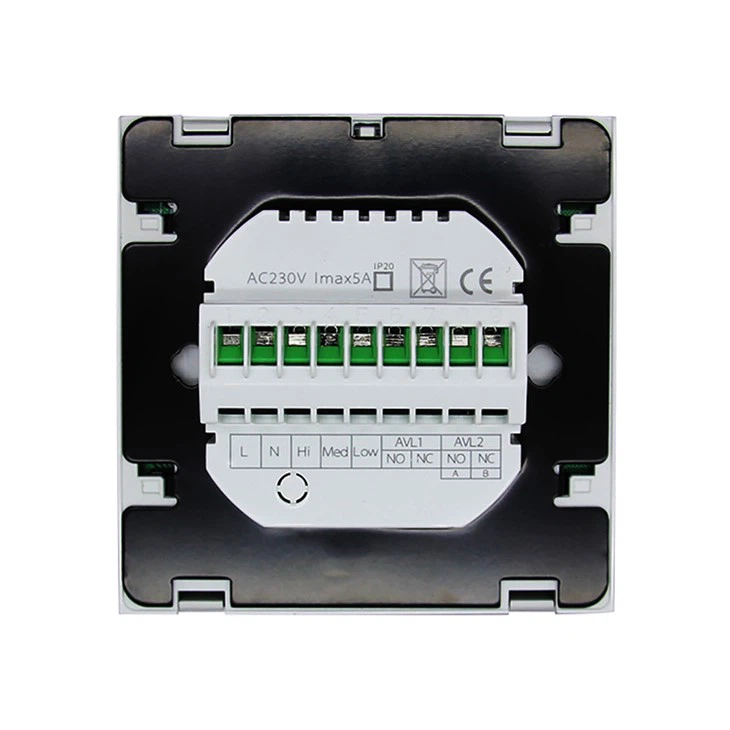

White/Blue Backlight Fan Coil Thermostat TDS23-AC

White/Blue Backlight Fan Coil Thermostat TDS23-AC

Name: China White/Blue Backlight Fan Coil Thermostat TDS23-AC Suppliers, Factory - Free Sample - Beok
Brand: Beok Controls
SKU: 243660630

Application: Central Air Conditioning System
Features: Big LCD Screen; Remote WiFi Control
Model Option: 2 or 4 pipe

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of white/blue backlight fan coil thermostat tds23-ac in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

TDS23 fan coil thermostat has a large LCD screen to makes the temperature and time can be easier to read, so it is very convenient to use.
This central air conditioning thermostat suitable for the Europe standard install box, no matter for 2 pipe or 4 pipe type, they all suitable for the 60*60mm install box. TDS23 WIFI fan coil thermostat can be controlled by Beok Home App, users can download the APP on Google Play or App Store.

23-AC-01-1000x

Video

Technical Parameters

Products name	Fan Coil Thermostat
Voltage	200~240Vac (24V can be customized )
Max Current Load	5Amp
Pipe Control	2 or 4 Pipe
Fan Speed Control	High/Mid/Low
Temp. Calibration	-5~5℃
Fan Coil	In-Control
Min Temp in Heating	10~40℃ ( Factory Default 10℃ )
Max Temp in Heating	10~40℃ ( Factory Default 40℃ )
Min Temp in Cooling	10~40℃ ( Factory Default 10℃ )
Max Temp in Cooling	10~40℃ ( Factory Default 40℃ )

23-AC-02-1000x

Model Spec

Wire Diagram

TDS23-AC2	TDS23-AC4	TDS23WIFI-AC2	TDS23WIFI-AC4
2 Pipe	4 Pipe	2 Pipe	4 Pipe
3 Fan Speed	3 Fan Speed	3 Fan Speed	3 Fan Speed
Non-WiFi	Non-WiFi	WiFi	WiFi
5Amp	5Amp	5Amp	5Amp
Inner Sensor	Inner Sensor	Inner Sensor	Inner Sensor
