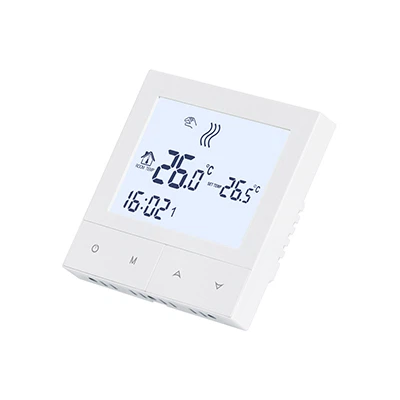

Smart Thermostat TDS72-WIFI-WPB For Gas Boiler
Application: Designed to control the gas boiler heating system
Feature: Large display screen and touch button; Selectable 80mmx80mm european hidden box
Model: TDS72-WPB
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of smart thermostat tds72-wifi-wpb for gas boiler in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.
Products Description
TDS72-WIFI-WPB is a Smart Thermostat for Gas Boiler with physical press buttons, compare with traditional 5 buttons type, this TDS72-WPB has only 4 buttons that can simple the operation. The 4-button design is concise and clear, suitable for various user groups, including the elderly, children, etc. The operation is simple and easy to understand and has a wide range of applicability. As a gas boiler thermostat, it use to control the wall hang gas boilers in the house.
TDS72-WIFI-WPB supports antifreeze mode, which can avoid damage caused by pipe freezing, reduce the cost of repairing and replacing pipes, and extend the service life of the pipe system, especially if users spend holidays far from their house in winter cold season.
video
Technical parameters
| Feature | Parameter |
| Product | Smart Thermostat for Gas Boiler |
| Power of Thermostat | 200~240Vac |
| Power Consumption of Thermostat | <0.3W |
| Electric Current Load | ≤3A |
| Temperature Control Accuracy | ±0.5 Celsius |
| Temperature Range | 5~60 Celsius |
| Temperature Limitation | High limitation:5-99 Celsius (default 35 Celsius); Low limitation 5-99 Celsius (default 5 Celsius) |
| Temperature Range for Floor Sensor | 5-99 Celsius |
| Precision for Floor Sensor | 1-9 Celsius (default 2 Celsius) |
| Sensor Type | NTC |
Main Characteristics Of TDS72
The TDS72-WPB Smart Thermostat for Gas Boiler is a white looking thermostat with a WIFI version that supports control through mobile software. It is a simple and powerful thermostat. The basic child lock function, real-time memory function, and power outage memory function can all be achieved through this product.
In addition, TDS72-WPB has a programming mode, allowing users to fully autonomously set the temperature for each time period. TDS72-WPB also has antifreeze function, saving energy while protecting the machine from freezing.
Remote Control
TDS72WIFI-WPB can remote control by phone
Dry Contact Connection

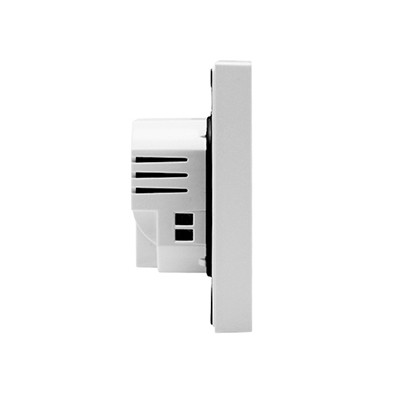

TDS72WIFI-WPB suitable for dry contact boiler
Competitive Price
TDS72WIFI-WPB has very good price
Model Spec
| Wiring |
 |
|
| Model name | TDS72-WPB/TDS72-WIFI-WPB | |
| Controlled Objects | Gas boilers | |
| Load current | ≤3Amp | |
| WiFi App/Phone App | search "Smart Life " or "Tuya Smart" in App Store (for iOS) or Google Play (for Android) or scan the code in the Manual | |
| Installation Method | For the installing cable, plumbing1.5-2.5mm2 hard wire | |
| Product color | White | |
| Precision for Room Temperature | 0.5-3℃(default 1℃) | |
| Sensor selection | Internal only | |
| Changeable Linkage Terminal Output Direction | Yes | |
manual
Smart Thermostat TDS72-WIFI-WPB for Gas Boiler
