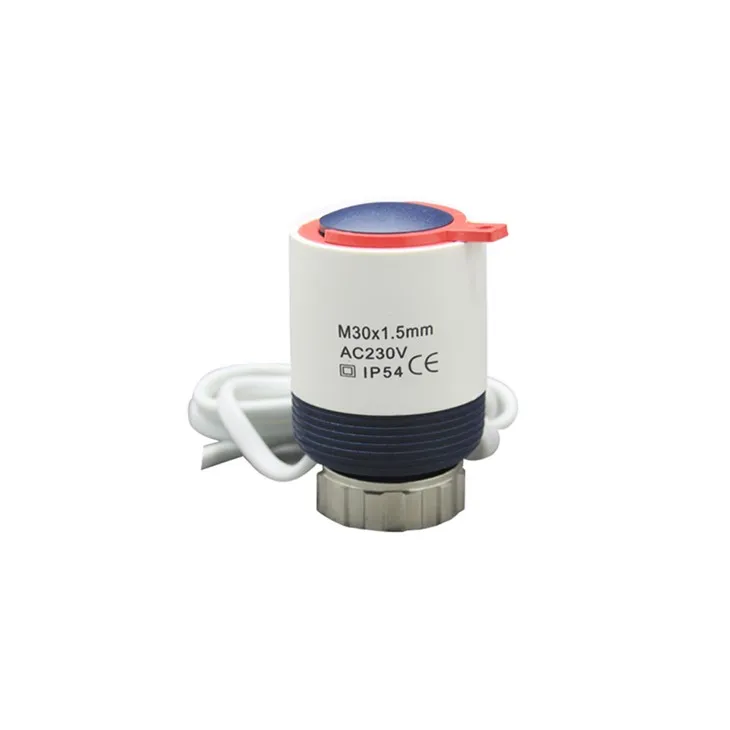

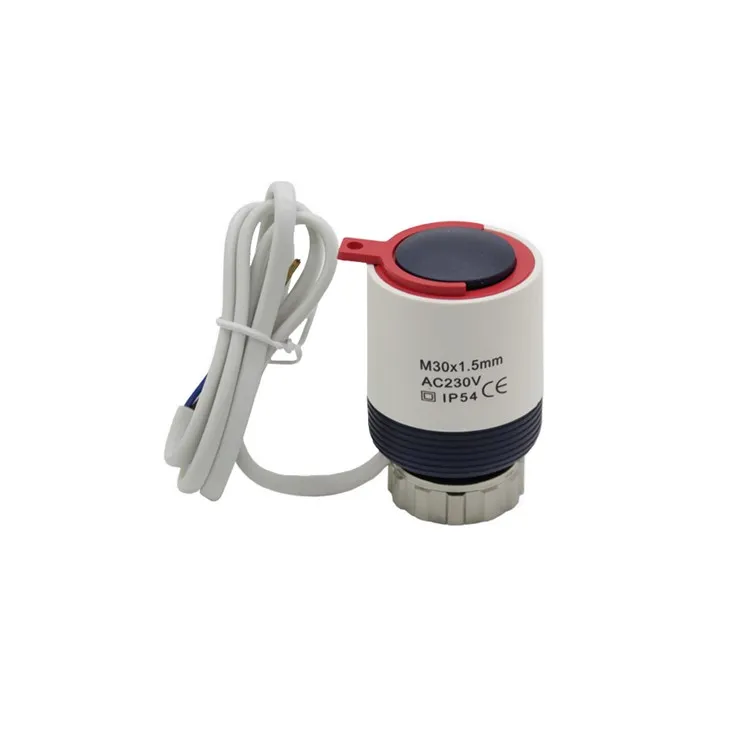

Normally Close Thermal Actuator RZ-BV-230-NC

Normally Close Thermal Actuator RZ-BV-230-NC

Application: Water Underfloor Heating System
Features: High Protect Level; Normally Closed; 230Vac
Model:RZ-BV-230-NC

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of normally close thermal actuator rz-bv-230-nc in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

Beok RZ-BV-230-NC underfloor heating actuator 230v is a normally closed electric thermal actuator is an actuator that is closed when there is no power and will only open when power is on. But how to use a normally closed electronic actuator? Firstly, connect it to the power and connect to controllers like room thermostat and hub controller, they will send a control signal to the acutator to turn on or turn off the actuator. When the control signal reaches the actuator, the actuator will be heated by the electric heating element, causing the paraffin to expand and push the piston or valve core of the actuator to open, thereby realizing the opening of the valve or other actuator to realize the room heating effect.

RZ-BV230-NC

Technical Parameters

Features	Data
Name	Underfloor heating actuator 230v
Model Number	RZ-BV-230-NC
Voltage	230Vac
Protect Class	IP54
Stroke	4mm
Connect Ring	M30*1.5mm ( support customize )
Certification	CE/ROHS
Material	PC+ABS

More Information

Why choose RZ-BV-230-NC?

* The appearance design conforms to the aesthetic taste of most users.
* Excellent components, using original electric heating paraffin propulsion components, stable performance
* Quick installation, nut connection, exposed installation is simple and convenient

* High quality and long time warranty, users do not need to change it frequently.

Wire Connection

RZ-BV underfloor heating actuator 230v wire connection

With Thermostat

RZ-BV-230-NC can work with water floor heating thermostat.

Our RZ-BV is 2 wire type normally closed electrical thermal actuator, the wire connection is shown in the right. Due to it is NC type, so it needs to connect N and Open terminal of the water floor heating thermostat.

With

Hub Controller

RZ-BV-230-NC can work with underfloor heating hub controller.

This underfloor heating actuator 230v is also can work with normally closed type hub controller. There are 4 actuators can connected to each zone of the controller to realize the cost of the central heating of a house.
