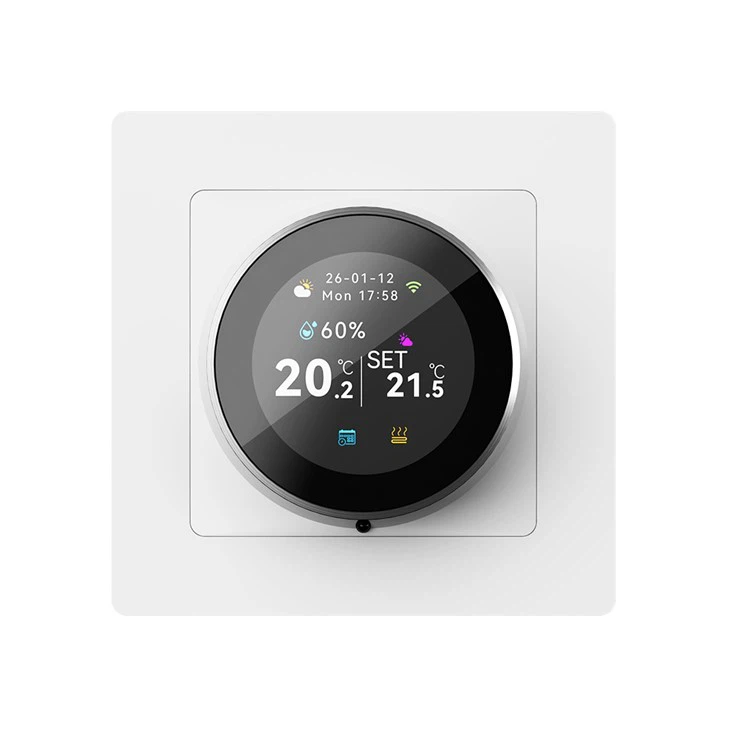

Round TFT Color Screen WiFi Floor Heat Thermostat TCC31

Round TFT Color Screen WiFi Floor Heat Thermostat TCC31

Name: China Round TFT Color Screen WiFi Floor Heat Thermostat TCC31 Suppliers, Factory - Free Sample - BEOK
Brand: Beok Controls
SKU: 290797777

Application: 16A electric heating system; 3A water heating system
Features: TFT color screen; Rotating round frame
Model: EP for electric heating; WP for water heating

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of round tft color screen wifi floor heat thermostat tcc31 in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

Beok TCC31 WiFi Floor Heat Thermostat is designed to deliver precise temperature control, intuitive operation, and a modern user experience for residential and light commercial applications. With its full-touch round display and intelligent control logic, it provides both comfort and energy efficiency in a compact, elegant form factor.

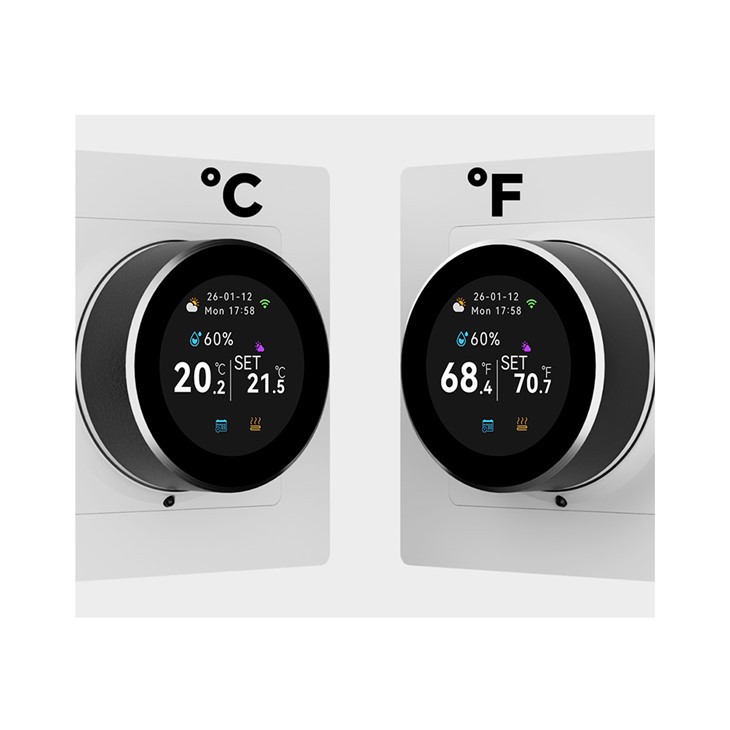

The TFT color screen thermostat features a high-resolution circular screen that presents all key information at a glance. Current temperature, set temperature, humidity, time, Wi-Fi status, and operating mode are clearly displayed, allowing users to understand system status instantly. Carefully designed icons make operation intuitive, even for first-time users.

underfloor-heating-room-thermostat

Technical Parameter

Model Number	TCC31-WIFI
Current Load	Max 3A (water heating) Max 16A (electric heating)
Electricity Power	100~240V AC 50~60Hz
Floor Sensor	NTC3950, 10K
Accuracy	Min ±0.5℃ (0.5℃~10℃)
Setting Temp. Range	5℃~95℃
Room Temp. Range	5℃~95℃
Power Consumption	2W Max
Protection Class	IP 20
Ambient Humidity	5~95% RH (Non Condensing)

wifi floor heat thermostat

competitive advantage

TCC31 WiFi Floor Heat Thermostat

Intelligent Temperature Control

Advanced temperature sensing technology ensures accurate regulation with minimal fluctuation. Users can easily adjust the set temperature through a smooth touch slider interface, achieving fast and precise control. The thermostat maintains a stable indoor environment while reducing unnecessary energy consumption.

Flexible Programming

Multiple operating modes are available, including manual control, programmable schedules, and temporary manual mode. Programming mode allows different temperature settings each day, helping users optimize comfort and efficiency according to their lifestyle. An annual mode further supports long-term energy planning.

Safety and Reliability

The wifi floor heat thermostat includes child lock functionality to prevent accidental changes, as well as antifreeze and system protection features to ensure safe operation in low-temperature conditions. Durable components and stable software design guarantee long-term reliability.

Smart Connectivity

Built-in Wi-Fi enables remote control via mobile applications, allowing users to adjust settings anytime and anywhere. Real-time feedback and system status monitoring improve convenience and provide greater control over heating performance.
