Smart Zigbee Floor Heating Thermostat TGR85-ZB
Application: for Underfloor Heating System
Feature: Supporting Zigbee Wireless Communication Protocol
Model: EP oe WP optional
EP-16A Electric heating
WP-3A Water heating
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Products Description
TGR85-ZB zigbee floor heating thermostat uses a mirror touch screen. Compared with ordinary touch screens, its interface has better light transmittance, making the interface display clearer in dim environments.
TGR85-ZB series zigbee thermostat adopts the more stable Zigbee intelligent protocol, it is a low-power zigbee thermostat. Compared with WIFI thermostat, its transmission distance is shorter and the network capacity is larger. With the gateway, you can achieve intelligent experiences such as voice control and linkage control. This makes temperature control smarter and more convenient.
Video
Technical Parameters
| Items | Data |
| Product Name | Smart Zigbee Thermostat |
| Application | Underfloor Heating System |
| Power Supply | AC100-240V |
| Electric Current |
≤ 3A (electric heating) ≤ 16A (water heating) |
| Communication Protocol | Zigbee |
| Temperature Accuracy | 0.5℃ |
| Temperature Setting Range | 5℃ ~ 95℃ |
| Temperature Compensation | -9.9℃ ~ 9.9℃ |
| Sensor Mode | IN / OUT / ALL |
Thermostat Characteristics
Large Mirror Glass Screen
TGR85 zigbee room controller is with a super big glass touch screen, and the display is mirror screen, which has high brightness, high contrast and high sharpness.

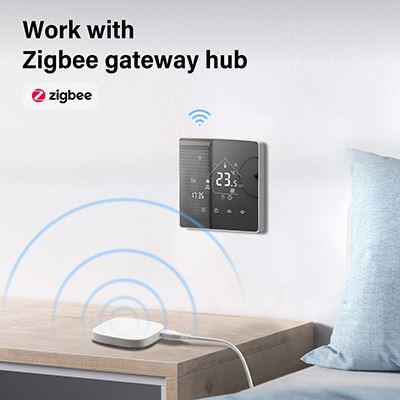

Work with app via zigbee gateway
After connected with zigbee gateway hub, TGR85 zigbee floor heating thermostat can be controlled via smart phone remotely. You can link TGR85 zigbee thermostat with your smart zigbee devices by zigbee gateway.
Remote control via Tuya or Smart life app
TGR85 zigbee thermostat can be remotely controlled by smart apps, the user can set the smart thermostat anywhere and anytime by phone.
with 4 level brightness for option
TGR85 series zigbee underfloor heating thermostats have low level brightness, medium brightness and high level brightness, and you can turn off the brightness at night.
Model Spec
| Wires Connection |
 |
 |
| Model number | TGR85-ZB-EP | TGR85-ZB-WP |
| weight | 300g | 230g |
| Color | Black Screen + White Frame | Black Screen + White Frame |
| Control Objects | Heating films, heating cables, heating mats | thermal actuators, motorized valves |
| sensor | external floor sensor + internal air sensor | internal air sensor |
| Sensor Length | 3 meters | / |
| Protection Level | IP20 | IP20 |
| Approval | EMC/LVD/ROHS | EMC/LVD/ROHS |
Manual
Smart Zigbee Underfloor Heating Thermostat TGR85-ZB
Please contact us to get more product details.
