LED Display Zigbee Radiator Actuator TRV-601

LED Display Zigbee Radiator Actuator TRV-601

Name: China LED Display Zigbee Radiator Actuator TRV-601 Suppliers, Factory - Free Sample - Beok
Brand: Beok Controls
SKU: 161508936

Application: to control water valves on Radiator
Feature: Supporting Zigbee Wireless Communication Protocol
Supporting Tuya app
Model: TRV-601

Send Inquiry

BEOK TRV-601

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of led display zigbee radiator actuator trv-601 in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

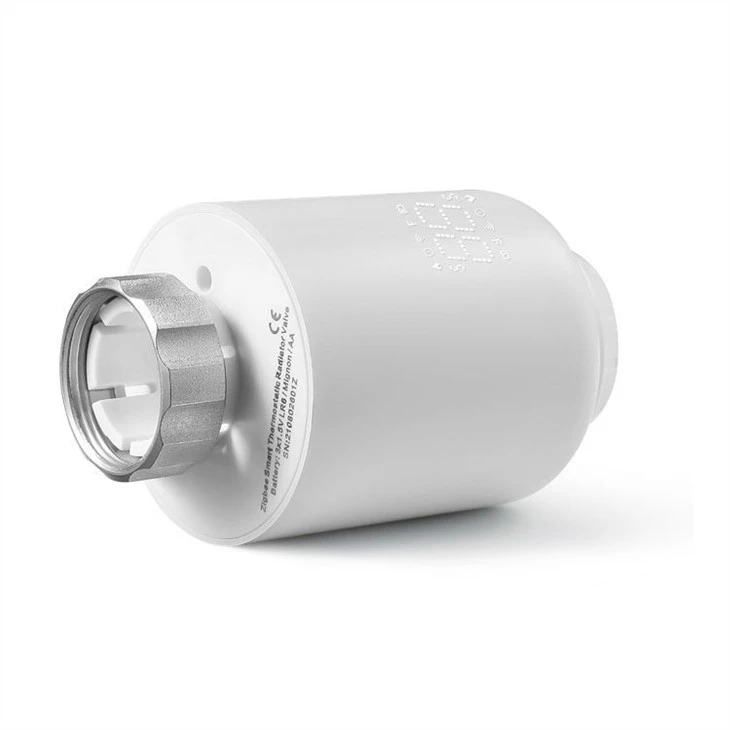

Beok TRV-601 radiator valve supports Zigbee hubs Tuya smart control function for room heating so that can realize remote controlled by phone anywhere and anytime. . It has LED large screen display. Our TRV-601 suitable for almost all M30*1.5mm radiator valves because it has 6 adaptors that can compitable for many heating systems.

TRV601

Video

Technical Parameters

Feature	Technical Parameter
Application	Radiator Heating System
Power Supply	3pcs 1.5V Alcaline AA Batteries ( Not Include )
Current Consumption	100mA Max
Protect Degree	IP20
Ambient Temperature	0~50℃
Surface Temperature	90℃ Max ( At the Radiator )
Connection	M30 x 1.5mm
Linear Travel	4.3mm
Size	58.4mm x 97mm x 58.4mm

More information

Zigbee Remote Control

TRV-601 is zigbee control radiator valve, so it can controlled by Tuya via a zigbee gateway. The gateway is necessory when using zigbee radiator.

Open Window Detection

TRV-601 has open window detection function, therefore, it is an energy saving product.

6 Standard Accessories

TRV-601 has 6 connect accessories. It can suitable for almost all valve brand. And the connection size is M30*1.5mm.

Child Lock Function

TRV-601 has child lock function, when it set to this function, it can prevent missoperation because the roated button is easy to change by children.

TRV601-03-1000x

Model Spec

Valve Front

Valve Back

Model Name

TRV-601

FAQ

Q: What devices can be connected with this TRV-601 radiator actuator?

A: This radiator actuator can be connected with many brands valve, such as Danfoss RA valve, Danfoss RAV valve, Danfoss RAVL valves, Caleffi valves, Giacomini valves, and M28 valves. When you receive products, you can find 6 kinds adapters with radiator actuator, and you can choose the suitable one for your valve when you use.

Q: What is TRV-601 radiator actuator powered?

A: It is 3 x 1.5V alkaline AA batteries powered. Please pay attention: the batteries are not included when you order. You need to prepare them by yourself.

Q: Can I customize the package box of this TRV-601?

A: Yes, we support package box customization, client can discuss with our sales for more information.

Q: How many TRV-601 radiator valves that one Zigbee gateway can be controll?

A: Actually there is no limited quantity of the radiator valves that can be controlled by Zigbee gateway.
