Wireless underfloor heating controller is used for hydraulic underfloor heating system. It can control electrical thermal actuators, boilers, circulation pumps and wireless room thermostats.
Product Introduction
Belief to start with, devoting about the food packaging and environmental defense for touch screen thermostat wifi, zigbee wireless thermostat, zigbee smart thermostat. We vigorously cultivate the innovation system, improve the incentive mechanism, restraint mechanism and fault tolerance mechanism, and create an open and inclusive atmosphere. We provide multi-directional quality services for our customers, and creating a good growth platform for our employees internally is our responsibility. We meet your needs with thoughtful service and good reputation to welcome new and old customers to visit us.
Products Description

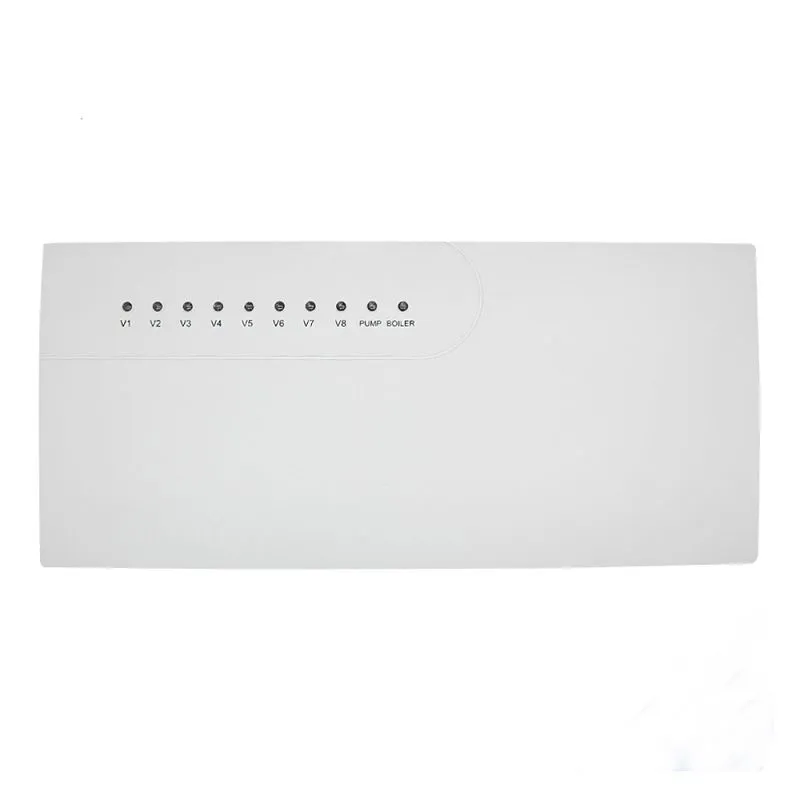

CCT-10-X Wireless Underfloor Heating Controller is used for hydraulic underfloor heating system. It can control boiler, zone valves, wireless boiler thermostats, circulating pump, electric actuators and various mixing valves. According to user's set temperature, the hub controller can control to open or close boiler, circulating pump and electric actuators, to achieve the purpose of comfort and energy consumption saving.
CCT-10-X central controller is radio frequency wireless type, it does not need wires to connect thermostats. It can work with our rf wireless thermostat BOT-X306 and rf wireless WiFi thermostat BOT306RF-WIFI. Each hub controller can control up to 8 thermostats.
Video
Technical Parameters
| Power Supply | 170~240VAC 50/60Hz |
| Frequency | 467MHz |
| Current Load | 3A |
| Self-consumption Power | < 10W |
| Working Temp. | -20~60℃ |
| Storage Temp. | -20~70℃ |
| Delay Time | 120s |
| Color | White |
| Size | 240mm*110mm*42mm |
product Features
Easy to use
One hub can control multiple devices, convenient and flexible to use;
Price effective and space save.

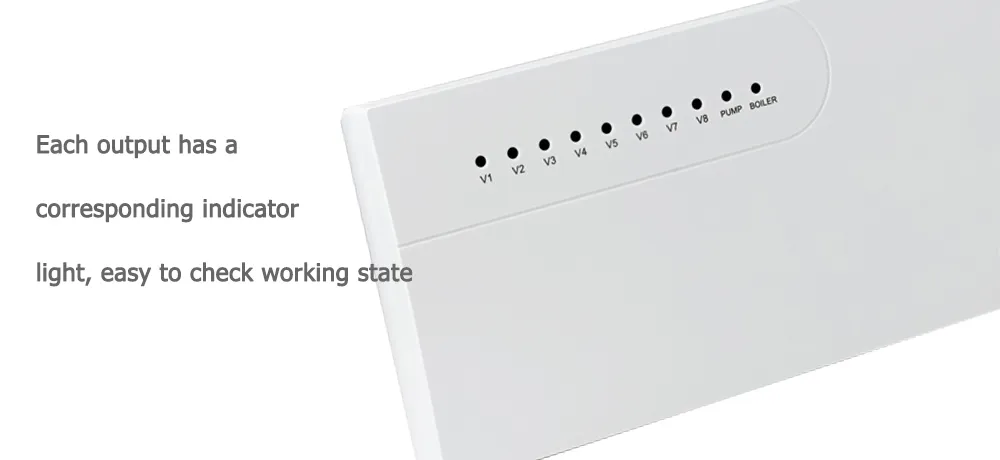

Output light indicator
When V1-V8 light is constant light, it indicates that motorized NC valve open. When light is off, valve is closed(NO valve is opposite);
PUMP is pump working indication light; BOILER is boiler working indication light.
Model Spec

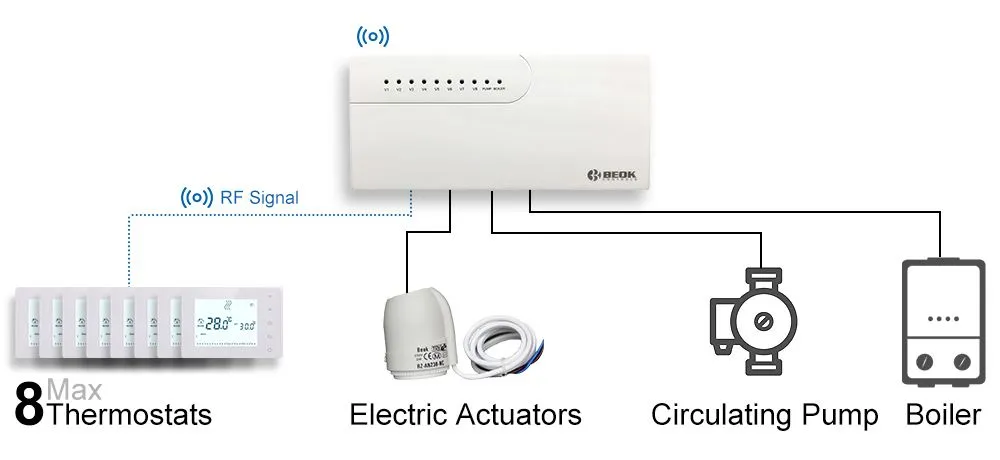

Control Objects:
1. Boiler
2. Pump
3. Electric actuators or valves
4. rf wireless boiler thermostats
FAQ
Q: Does the controller need wires to connect with thermostat?
Q: How can I connect the wireless hub with wireless thermostat?
Q: How many pieces thermostats can I connect with the hub?
Q: How many pieces electric actuator can I connect with CCT-10-X?
Q: What thermostats can work with CCT-10-X hub?
Manual
RF Wireless 8-Channel Concentrator Hub Controller CCT-10-X for Underfloor Heating System
