How a UFH Wiring Centre Controls Thermostats, Actuators, Pump and Boiler

A water underfloor heating system is usually made up of several key parts: room thermostats, thermal actuators, a manifold, a circulation pump, and a boiler or heat pump. In a multi-zone heating system, all these parts need to work together accurately. This is where a UFH wiring centre plays an important role.

A UFH wiring centre, also called an underfloor heating control box or wiring box, is the central connection and control unit of the underfloor heating system. It receives heating demand signals from room thermostats, controls the opening and closing of thermal actuators, starts the circulation pump when heating is required, and sends a boiler or heat pump enable signal when necessary.

In this article, we will explain how a UFH wiring centre controls thermostats, actuators, the pump, and the boiler in a typical water underfloor heating system.

What Is a UFH Wiring Centre?

A UFH wiring centre is an electrical control unit used in hydronic underfloor heating systems. It is usually installed near the underfloor heating manifold. The main function of the wiring centre is to simplify wiring and coordinate the operation of different heating components.

Instead of connecting each thermostat, actuator, pump, and boiler signal separately, the wiring centre provides a clear terminal layout. This makes installation easier, reduces wiring errors, and improves the reliability of the whole heating system.

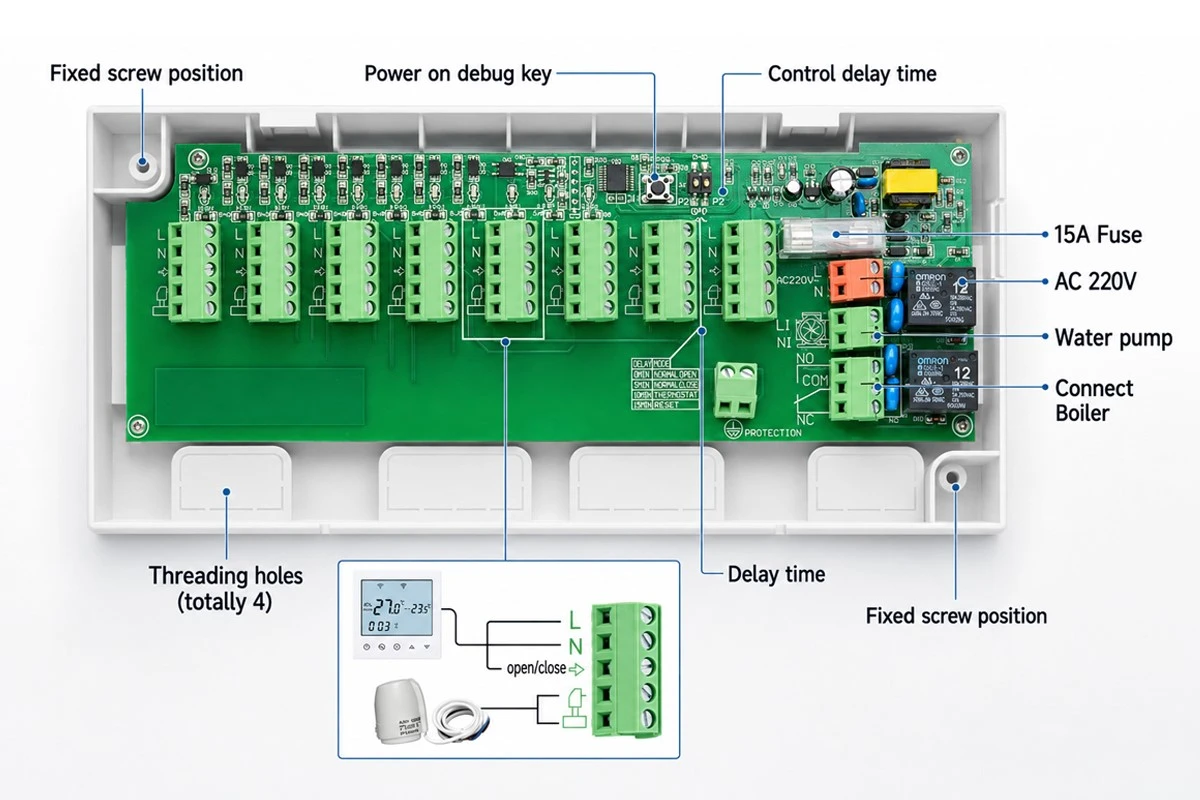

A typical UFH wiring centre may include: Thermostat input terminals;Actuator output terminals;Pump output terminal;Boiler or heat pump enable terminal;Power supply terminals;LED status indicators;Fuse protection;Optional delay function for pump or boiler control.

How Room Thermostats,Thermal Actuators,Circulation Pump and Gas Boiler Work with a UFH Wiring Centre?

Room Thermostat:

Room thermostats are installed in different rooms or heating zones. Each thermostat measures the room temperature and compares it with the set temperature.

When the room temperature is lower than the set temperature, the thermostat sends a heating demand signal to the UFH wiring centre. This signal tells the wiring centre that the room needs heat.

When the room reaches the target temperature, the thermostat stops sending the heating demand signal. The wiring centre then turns off the related actuator output.

This allows each room to be controlled independently, which is one of the main benefits of underfloor heating zone control.

Thermal Actuators:

Thermal actuators are installed on the manifold valves. Their job is to open or close the water flow for each heating loop.

When a thermostat sends a heating demand signal, the UFH wiring centre supplies power to the corresponding actuator. The actuator then begins to open the valve on the manifold. Once the valve is open, hot water can flow through the underfloor heating pipe in that zone.

When the thermostat stops calling for heat, the wiring centre cuts power to the actuator. The actuator then closes the valve and stops water flow to that zone.

Most underfloor heating systems use normally closed thermal actuators. This means the actuator stays closed when there is no power and opens when power is applied. Some systems may use normally open actuators, so it is important to choose a wiring centre that matches the actuator type.

Circulation Pump:

The circulation pump moves hot water from the heat source through the manifold and into the underfloor heating pipes.

The UFH wiring centre usually controls the pump automatically. When at least one room thermostat calls for heat, the wiring centre detects that there is heating demand and turns on the pump output.

The process is usually as follows:

One or more thermostats call for heat.
The wiring centre powers the related actuators.
The manifold valves begin to open.
The wiring centre activates the pump output.
The pump circulates hot water through the open heating loops.

When all thermostats stop calling for heat, all related actuators close. The wiring centre then turns off the pump output because no heating zone requires water circulation.

Some wiring centres include a pump delay function. This can delay pump startup or pump shutdown to protect the system and improve operating efficiency. For example, a short delay may allow actuators enough time to open before the pump starts running.

Gas Boiler:

In many underfloor heating systems, the boiler should only start when there is actual heating demand. The UFH wiring centre can provide a boiler enable signal.

When one or more zones require heating, the wiring centre sends a signal to the boiler. This tells the heat source to start producing hot water.

When there is no heating demand from any zone, the wiring centre stops the boiler enable signal. This prevents unnecessary energy consumption and helps improve system efficiency.

The boiler output is often a volt-free contact, also called a dry contact. This type of output does not directly supply voltage to the boiler. Instead, it works like a switch signal. However, different boilers may have different control requirements, so installation should always follow the wiring diagram of both the UFH wiring centre and the heat source.

Why a UFH Wiring Centre Is Important?

A UFH wiring centre is not only a wiring accessory. It is an important control component in the underfloor heating system.

1. Easier Installation

A wiring centre provides clearly marked terminals for thermostats, actuators, pump, and boiler connection. This helps installers complete wiring faster and reduces mistakes during installation.

2. Better Zone Control

Each room or area can be controlled independently. Users can set different temperatures for bedrooms, living rooms, bathrooms, and other zones.

3. Energy Saving

The boiler, heat pump, and pump only operate when heating is required. This helps reduce unnecessary energy use.

4. Improved System Protection

With proper wiring and control logic, the system can avoid unnecessary pump operation, reduce relay switching problems, and improve long-term reliability.

5. Cleaner Wiring Layout

Instead of messy point-to-point wiring, all system connections are organized inside one control box. This makes maintenance easier.

Anyway,UFH wiring centre is the control hub of a water underfloor heating system. It connects room thermostats, thermal actuators, the circulation pump, and the boiler or heat pump into one coordinated system.a

When a room needs heat, the thermostat sends a signal to the wiring centre. The wiring centre opens the correct actuator, starts the pump, and enables the boiler or heat pump. When the room reaches the set temperature, the wiring centre turns off the related outputs.

For homeowners, installers, and distributors, choosing the right UFH wiring centre can make the heating system easier to install, more reliable, and more energy efficient. For multi-zone underfloor heating systems, a well-designed wiring centre is an essential part of modern heating control.
