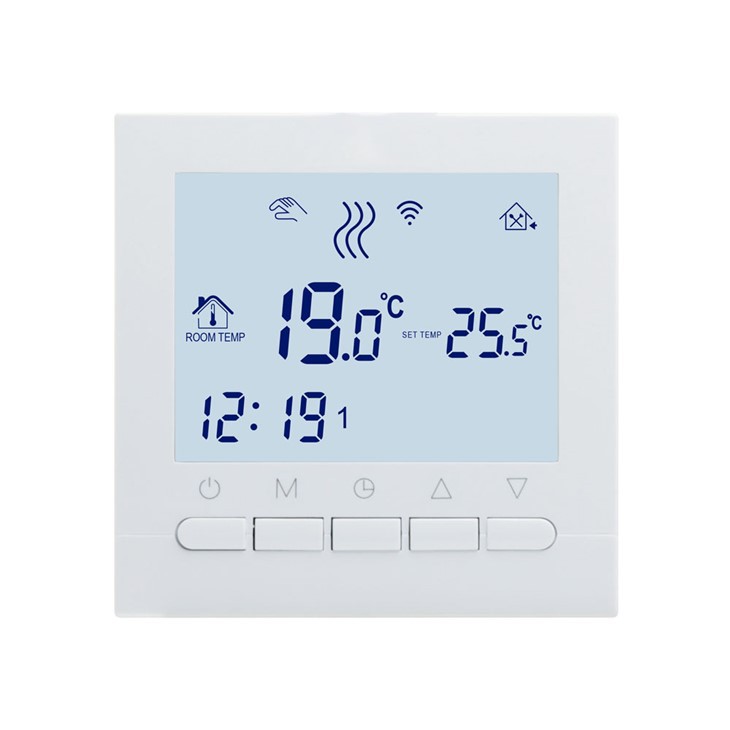

BOT313WIFI Smart Thermostat for Boiler System

BOT313WIFI Smart Thermostat for Boiler System

Name: China BOT313WIFI Smart Thermostat for Boiler System Suppliers, Factory - Free Sample - Beok
Brand: Beok Controls
SKU: 239628253

Application: Gas Boiler Heating Control
Feature: Wired; WiFi Control; Press Button
Model: BOT-313WIFI

Send Inquiry

BEOK BOT-313WIFI Room Thermostat

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of bot313wifi smart thermostat for boiler system in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

BOT-313WIFI is a Smart Thermostat for boiler system, It is a traditional design button press type room heating thermostat, which can control thermal actuators and gas boilers.

BOT-313WIFI Room Thermostat has WiFi remote control function by our own Beok Home application on phone, and also support Goole Home and Amazon Alexa voice assistant.

BOT-313WIFI LCD Screen Thermostat with digital display screen and the temperature display in big words so it is very easy to read the temperature.

BOT-313 WIFI Gas Boiler Thermostat

Video

Technical Parameters

Working Voltage	200~240Vac
Current Load	3Amp
Precision for Room Temperature	0.5℃
Precision for Floor Temperature	1℃
Setting Temperature Range	5~60℃
Limiting Temperature Range	5~99℃
Consumption	＜0.15W
Temperature Sensor	inner air sensor
Calibrate Accuracy	0.5℃

Smart Thermostat for Boiler System

Thermostat More Details

Smart Thermostat for Boiler System.

wifi gas boiler heating thermostat BOT-313WIFI

BeokHome App Control

BOT-313WIFI Gas Boiler heating Thermostat works with BeokHome App, people does not need to go to installation position to operate it, just adjust the setting temperature, mode adjustment and other advanced settings on smartphone remotely.

Multi-language App

One of super advantages of BOT-313WIFI Room Thermostat is that BeokHome App has multi-languages. Clients just need to adjust the language of their phone system, the App language will be automatically synced with the phone language. There are 9 languages for settings, including English, German, Spain, Italy, Russian, French, Czech, Poland, Slovenia.

2 Backlight Colors

BOT-313WIFI digital room thermostat has 2 different backlight color for option, one is white frame with white backlight, another is white frame with blue backlight, user can choose them according to your home decoration style and your preferences.

Thermostat Dimention

BOT-313 WIFI smart thermostat for boiler system is wired, and wall embedded type. The screen dimension is 86*86mm, the thickness of screen is 14mm. The size of backside is 60mm, suitable for Enropean standard wal mounting box.

Model Spec

Model Name	Wire Connection	Instruction
BOT-313WIFI		1 (Close) and 2 ( Open ): connect with Actuators and Valves
		3 ( N ) and 4 ( L ): connect with 200-240Vac electricity
		5 ( K1 ) and 6 ( K2 ): connect with gas boiler
