Battery And USB Powered Wifi Boiler Thermostat BOT-T9N-WIFI

Battery And USB Powered Wifi Boiler Thermostat BOT-T9N-WIFI

Application:Gas Boiler Heating
Feature: Wi-Fi function; Broadlink protocol; Powered by USB cable
Model: BOT-T9N-WIFI

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Products Description

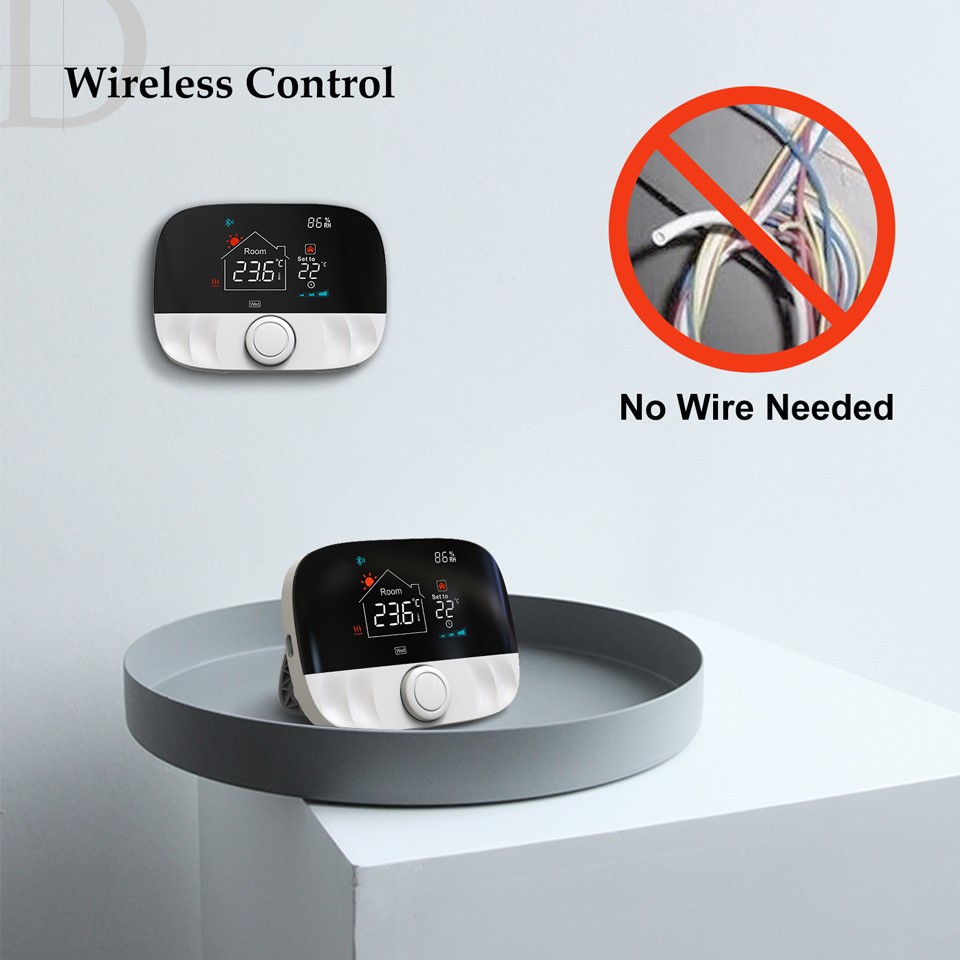

BOT-T9N-WIFI WiFi Boiler Thermostat is a RF wireless temperature controller, it has two parts - rf wireless control panel and rf wireless receiver, so the controller does not need wires to connect with boiler. The RF signal distance across the concrete wall is about 30 meters.

BOT-T9N-WIFI RF Wireless Thermostat is not only suitable for wireless gas boiler heating system, but also 16A wireless electric underfloor heating system. The wifi thermostat can connect with electronic heating elements, thermal actuators and gas boiler.

BOT-T9N-WIFI Smart Wireless Thermostat has two power supply ways, one is battery power, another is USB type C cable power, user can choose the power method according to needs.

Battery and USB Powered Wifi Boiler Thermostat BOT-T9N-WIFI

Video

Technical Parameters

RF Thermostat	Power Supply	2*1.5V AA Batteries / USB Cable (Type C)
	Temperature Setting Range	5~95℃
	Ambient Temperature	-5~50℃
	Measurement Temperature	0.1℃
	Setting Temperature Accuracy	0.5℃
	Transmission Distance	≤100m in the open air
	Protection Level	IP20
	Wireless Frequency	433MHz (FSK)

RF Receiver	Power Supply	AC100~240V; 50/60Hz
	Power Consumption	1W Max
	Ambient Temperature	-5~50℃
	Transmission Distance	≤100m in the open air
	Wireless Frequency	433MHz (FSK)

Wireless WiFi Boiler Thermostat BOT-T9N-WIFI

More Features

Two Installation Way

BOT-T9N-WIFI wireless gas boiler thermostats has a bracket on the backside, user can put it on the table or desk. Meanwhile, it also can be mounted on wall if you need. The installation way is very flexible according to the specific demands.

Two Power supply way

BOT-T9N-WIFI wifi boiler thermostat can be powered by 2 pieces AA batteries, the batteries is not included in the packaging box. Meanwhile, there is a USB cable in the packaging box, you can also power it via USB cable. When the thermostat is powered by batteries and USB cable at the same time, it will preferentially use USB power.

weather and humidity

After the WiFi is connected, the wifi boiler thermostat automatically displays the weather and humidity on the screen. The data are synced from the mobile network.

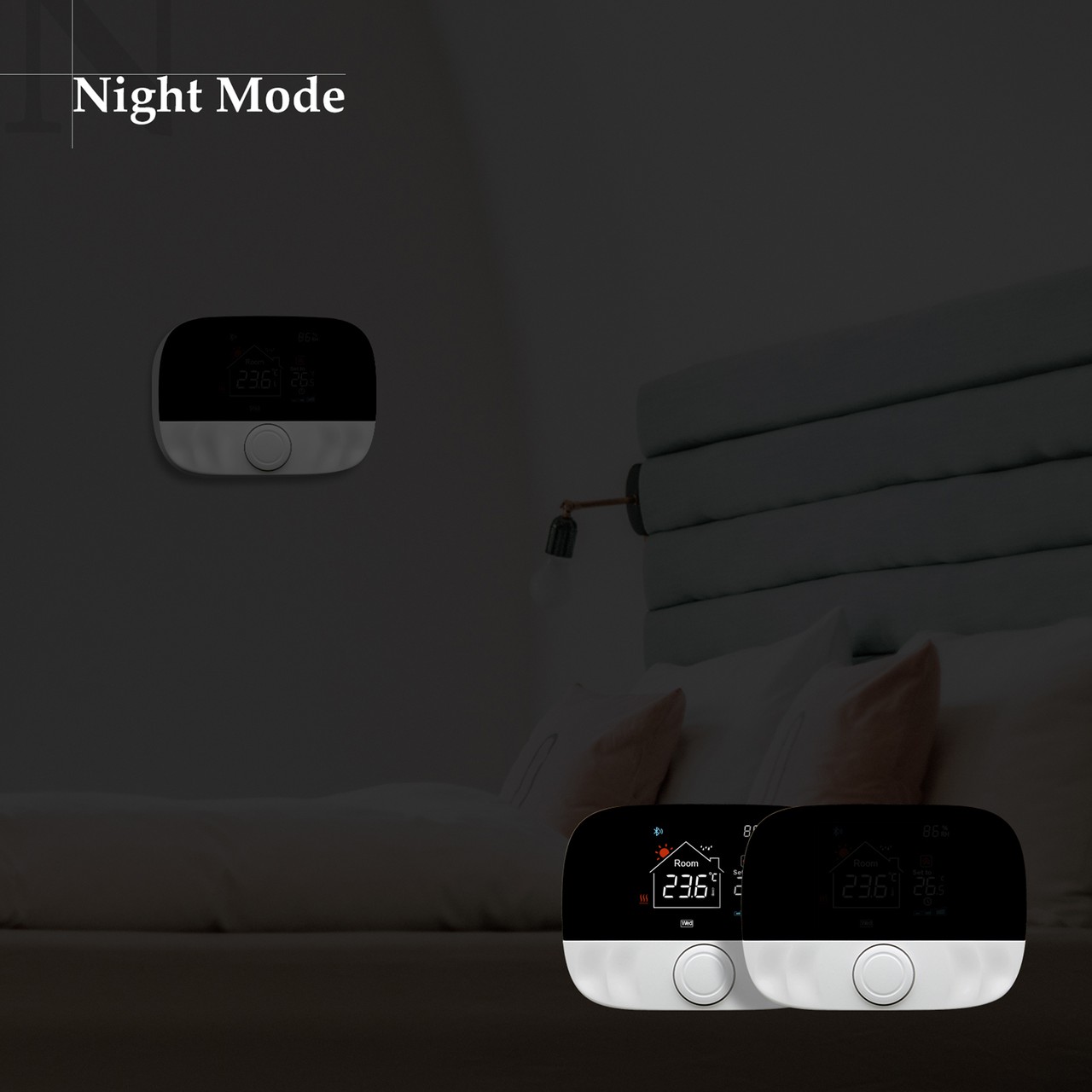

night mode

People can set the night mode on your smart phone, including setting the duration of night mode, and temperature and screen brightness during night mode.

Model Spec

Wiring Diagram
Control Objects	Gas Boiler ( Potiential-free Output) / Thermal Actuator / 16A Electronic Heating Elements
Rated Voltage	AC100~240v

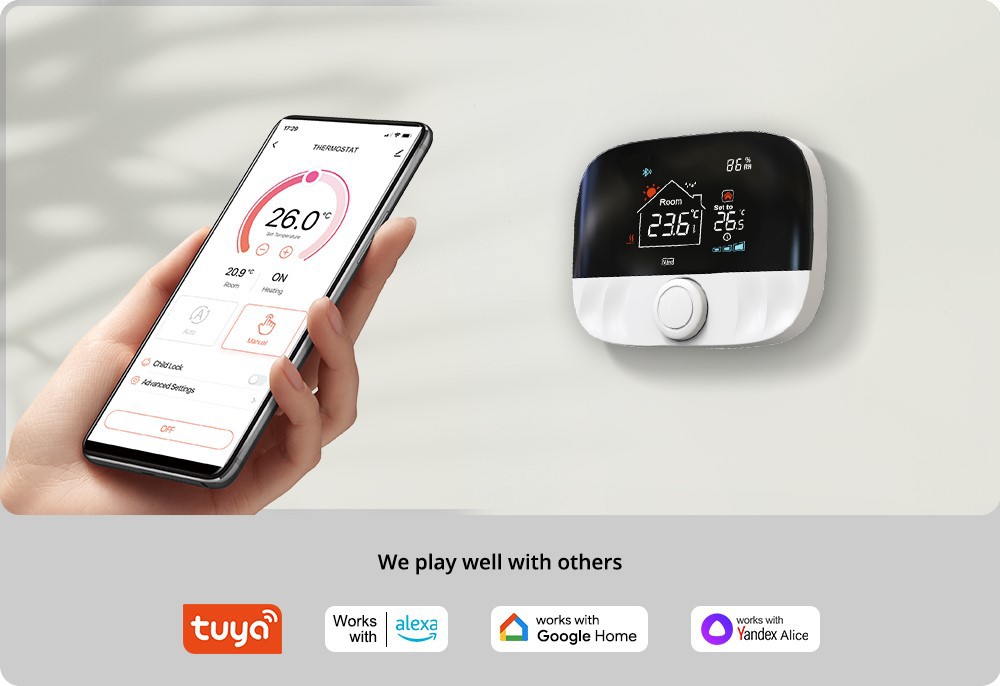

WiFi App	Tuya Smart / Smart Life
Speaker Assistant	Google Home / Amazon Alexa / Yandex Alice
Installation Method	Dektop / Wall-mounted
