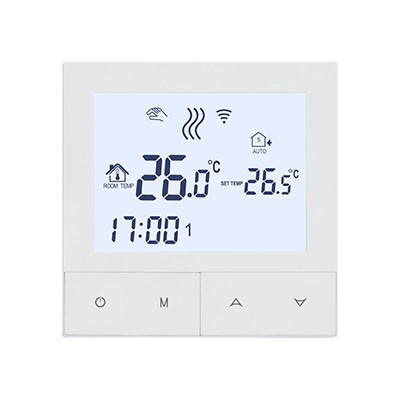

Wifi Boiler Thermostat Control TGT79-WIFI-WPB

Wifi Boiler Thermostat Control TGT79-WIFI-WPB

Name: Wifi Boiler Thermostat Control TGT79-WIFI-WPB
Brand: Beok
SKU: 242035000

Application: Only for the heating system with gas boilers
Feature: Mobile phone control; Touch screen dispaly;
Model: TGT79-WPB

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Products Description

TGT79-WIFI-WPB Wifi Boiler Thermostat Control is a powerful touch screen thermostat with white outlook and is easy to operate. This thermostat has negative screen display, that is an intelligent temperature control device with a negative display, which can clearly display the current indoor temperature, set temperature, working mode and other information. The negative display adopts reverse display technology. When the backlight is on, the numbers and text are displayed in white and the background is black, making the displayed content clearer and easier to read, especially in a dimly lit environment.

TGT79-WIFI-WPB can be programmed into three different kinds of holiday modes to meet your customized thermo needs. Its frost protection function protects the machine from extremely low temperature environment. The basic child lock function, real-time memory function, and power outage memory function can all be achieved through this product.

gas boiler heating thermostat

video

Technical parameters

Technical indicators	Parameter
Name	Wifi Boiler Thermostat Control TGT79-WIFI-WPB
Mode	Manual control or automatic control
Power Voltage	230V 50~60Hz
Self-consumption Power	<0.3W
Current	≤3A
Accuracy	±0.5 Celsius
Temp. Setting Range	5~60 Celsius
Limiting Temp. Range	Both high and low limitation can be set within 5-99 Celsius
Measure Temperature	Check and caliberate the actual room temperature (default 0.5 Celsius caliberate)

wifi wired gas boiler heating thermostat

Wire Connection

TGT79-WIFI-WPB Wire Connection Display

TGT79 series Wifi Boiler Thermostat Control is mainaly for gas boiler heating on/off control so it can connect with dry contact gas boilers. But it not only can control gas boiler, it also can connect with Normally Opened and Normally Closed Thermal Actuators. Thus it can use as a water underfloor heating thermostat. When connect it with actuator, the wire connection need to be attention is to distinguish the Open and Close terminals, it writed on thermostat back. The wire connection need to be careful because if there is wrong connect, the control device will distroy so we suggest users to install and wire it under the guide of a professional engineer or by following the instructions step by step.

Model Spec

Wiring Connection
Model	TGT79-WPB/TGT79-WIFI-WPB
Application	Wifi Boiler Thermostat Control
WiFi App	Tuya Smart
Sensor Option	only internal sensor for WPB version
Linkage Terminal Output Direction	01 for set temp.
