OLED Display Zigbee Radiator Actuator TRV-602
Application: to control water valves on Radiator
Feature: Supporting Zigbee Gateway Hub
Model: TRV-602
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of oled display zigbee radiator actuator trv-602 in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.
Products Description

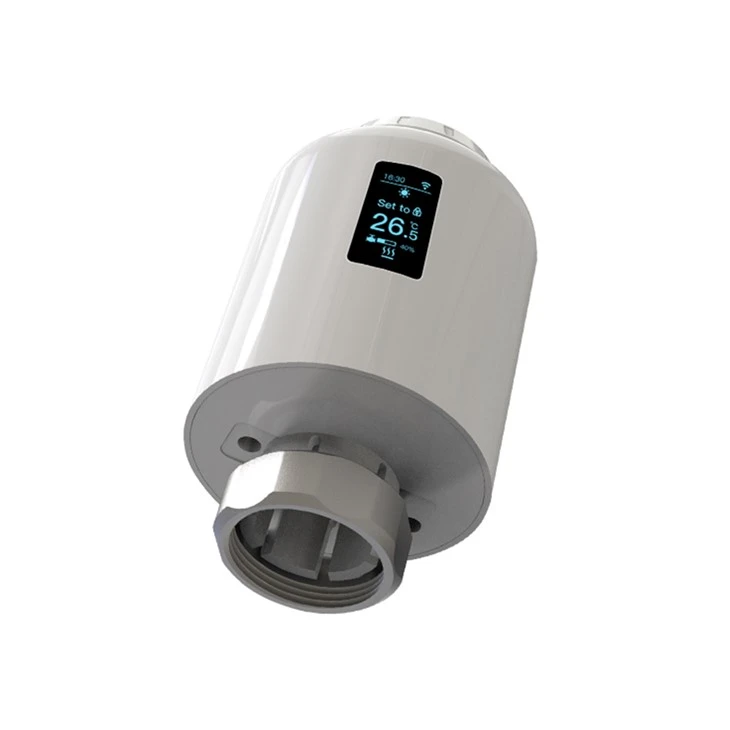

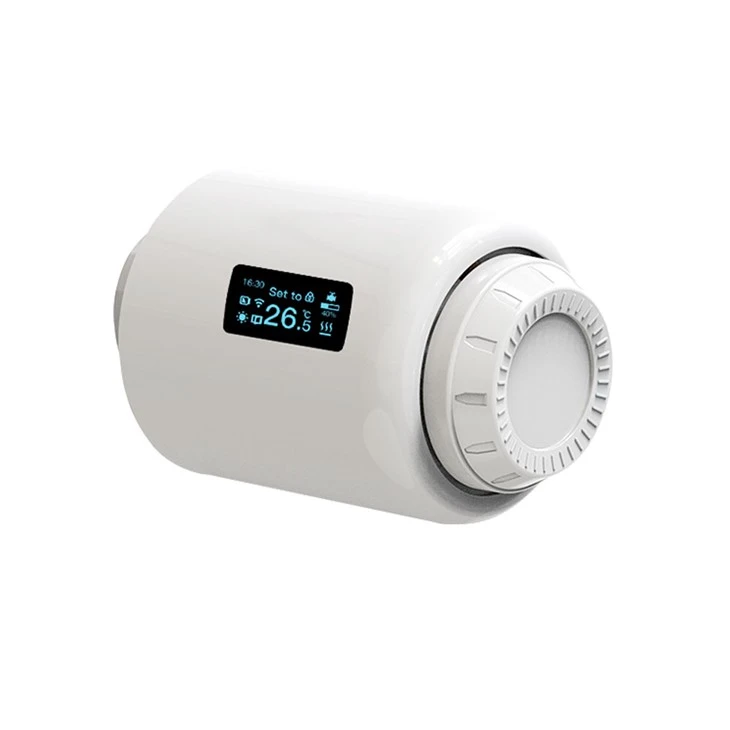

Beok TRV-602 Thermostatic Radiator Valve Actuator is with black backlight OLED display screen on the body, and it is powered by 3 pcs AA batteries, which is very easy to install and operate.
Beok TRV602 Radiator Valve supports zigbee communication protocol, after connecting Tuya zigbee gateway, it is accessible via your smartphone app Tuya Smart and Smart life.
Technical Parameters
| Items | Parameters |
| Model Name | TRV602 Zigbee Radiator Actuator |
|
Heating System |
Radiator Heating System |
| Power Supply | 3pcs AA Batteries ( Not included in the Box ) |
| Current | 100mA Max |
| Protection Level | IP20 |
| Temperature Ambient | 0~50℃ |
| Surface Temperature | 90℃ Max (at the radiator) |
| Connect | M30 x 1.5mm |
| Linear Travel | 4.3mm |
| Application | Tuya/Smart Life |
| Size | 58.4mm x 97mm x 58.4mm |
| GW | 210g |
More Functions
Choose the valve that suits you best.
Work with Tuya Zigbee Gateway
TRV602 zigbee actuator supports Tuya zigbee gateway hub, users can control the smart actuator by Smart Life App or Tuya Smart App, and people also can connect it with speaker assistant .
window opening detection
The TRV602 zigbee actuator is with window opening detection mode, when it detected the room temperature dropped sharply, it will stop to heat the room temperature.
Statistics Data
The zigbee valve actuator has statistics data record function, user can view the room temp. and setting temp. records for the last month on smartphone, as well as the output records.
Screen Rotation
The screen direction of this zigbee valve actuator can be rotated according to your installation direction, which help user view temperature on screen conveniently.
Model Spec
In the TRV-602 package, you can find:
1pc * TRV-602 Radiator Valve
1pc * User Manual
6pcs * Adaptors for Different Valves
1pc * Screw
1pc * Screw Nut
do you have any question?
Contact us without hesitaion.
