Wireless Underfloor Heating Control Hub CCT-28-X

Wireless Underfloor Heating Control Hub CCT-28-X

Application:3A Water Floor Heating System
Features: Wireless type,433MHz
Model: CCT-28-X
works with BOT-R6 series wireless thermostat
works with BOT-R7 series wireless thermostat

Fast Delievery
Quality Assurance
24/7 Customer Service

Shanghai Beok Controls Co., Ltd. is one of the most reliable manufacturers and suppliers of wireless underfloor heating control hub cct-28-x in China. Our factory offers high quality products made in China with competitive price. Welcome to contact us for free sample and cheap products.

Products Description

CCT-28-X is a central wireless hub controller for hydraulic heating system, it can connect with gas boiler, pump, thermal actuators and thermostats to control the indoor temperature in multiple rooms. Compared to traditional wired hubs, the biggest feature of wireless hubs is that they can connect to thermostats without wiring. They only require wireless pairing, which helps users avoid the hassle of rewiring.

CCT-28-X Wireless Underfloor Heating Control Hub can connect with 8 wireless thermostats (8 loops), each thermostat has an power input indicator light, users can easily identify which thermostat is heating.

CCT-28-X Wireless Underfloor Heating Control Hub

Video

Technical Parameters

Model Name:	CCT-28-X
Application:	Wireless Underfloor Heating Control
Current Loading:	Max 20mA
Frequency:	433MHz
Wireless Signal Distance:	30m (indoor); 200m (outdoor)
Ambient Temperature:	0~85 ℃
Pump Output Delay:	5 min
Max. Power of Pump:	1000W

Product Features

CCT-28-X Wireless Underfloor Heating Control Hub Box

Works With Wireless Thermostats

CCT-28-X hub and BOT-R6, BOT-R7 series wireless battery power gas boiler thermostats can be used together for wireless underfloor heating control system. These two thermostats connect with CCT-28-X wireless hub via radio frequency signal, no need wires connection.

Controls 8 zones individually

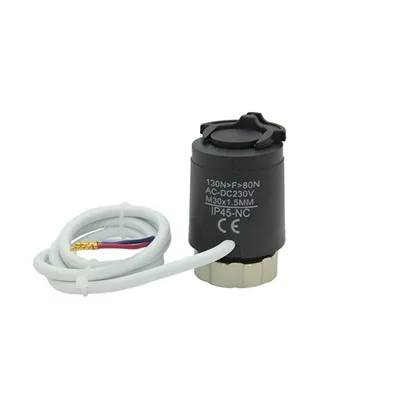

CCT-28-X wireless thermostat controller can connect up to 8 units thermostats, which means user can control 8 rooms temperature individually. Each zone can connect with 3-4 pieces thermal actuators.

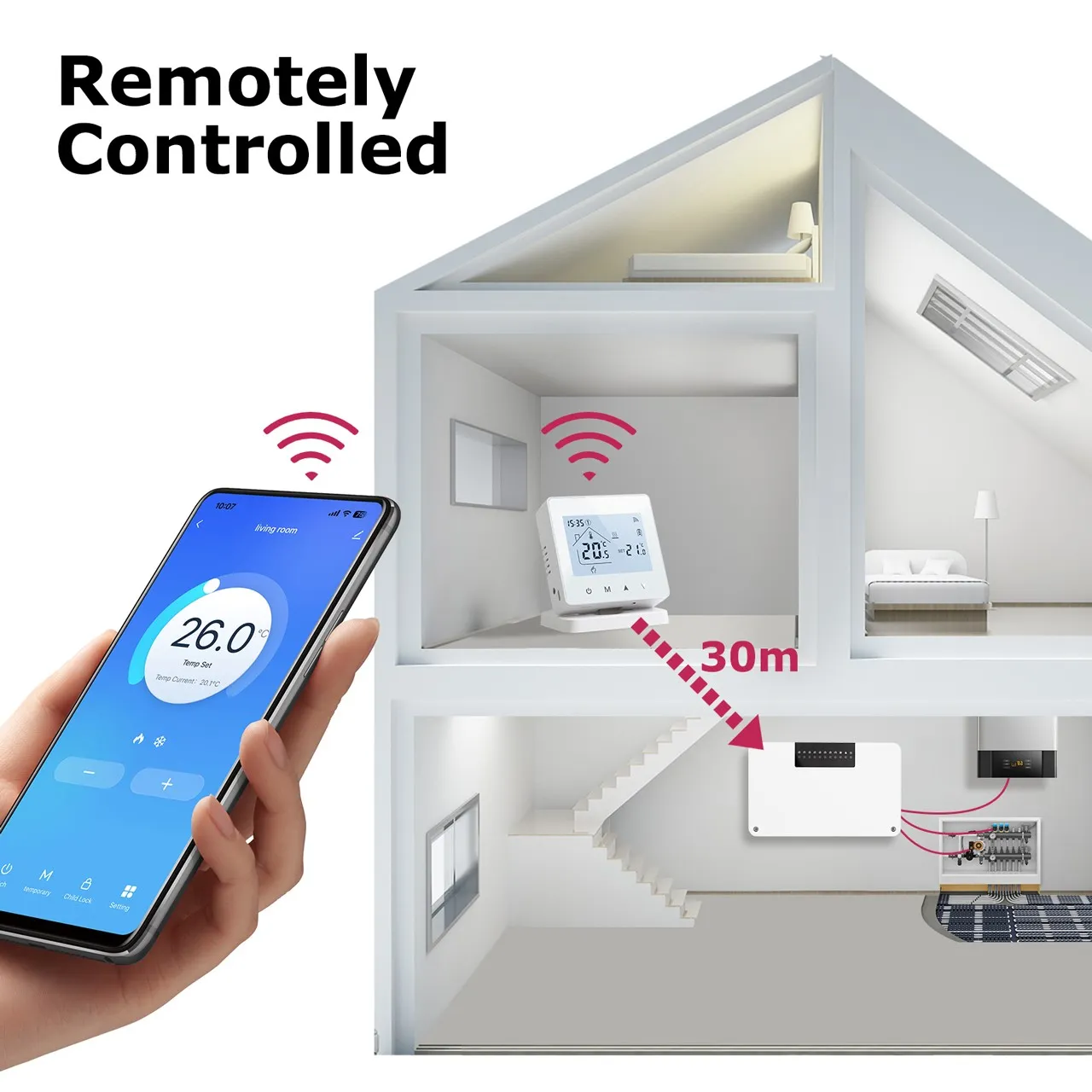

Control Temperature Remotely

After paired with CCT-28-X wireless hub, the wifi wireless thermostats can connect with Tuya Smart / Smart Life App, so users can control each rooms temperature via smartphone anywhere and anytime.

Indicator Light

Each input of this CCT-28-X wireless underfloor heating control box has their own power indicator light, including Power on/off indicator, Boiler indicator, Pump indicator, Each Thermostat Heating indicator.
